LGA series
LED ROADWAY & STREET LIGHT
>145lm/W 30-200W 5 Yrs Warranty L70 > 100,000 Hours
LED ROADWAY & STREET LIGHT
>145lm/W 30-200W 5 Yrs Warranty L70 > 100,000 Hours

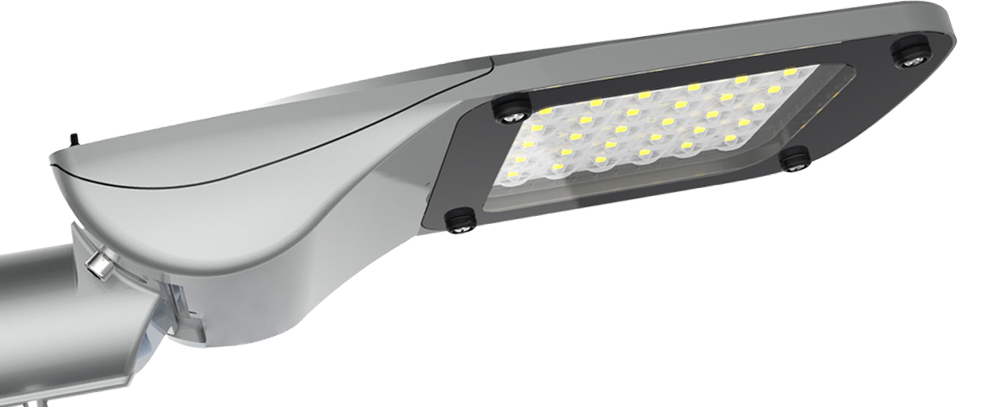

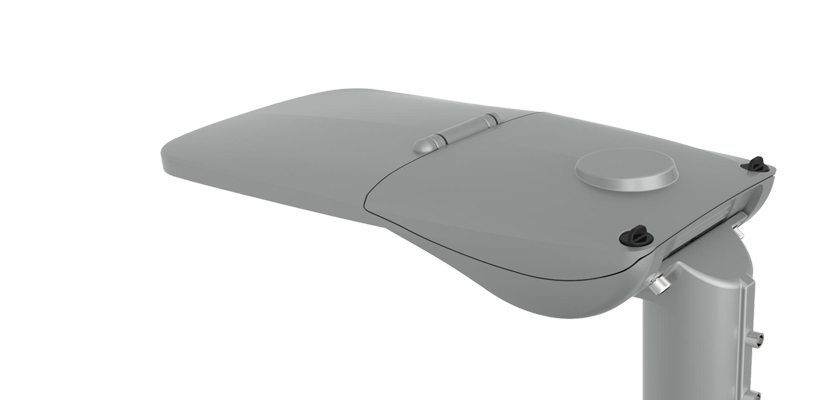

LGA series LED street light overturned the traditional design conception, provides higher efficiency but lower cost,
it is one the best choices for the roadway lighting.

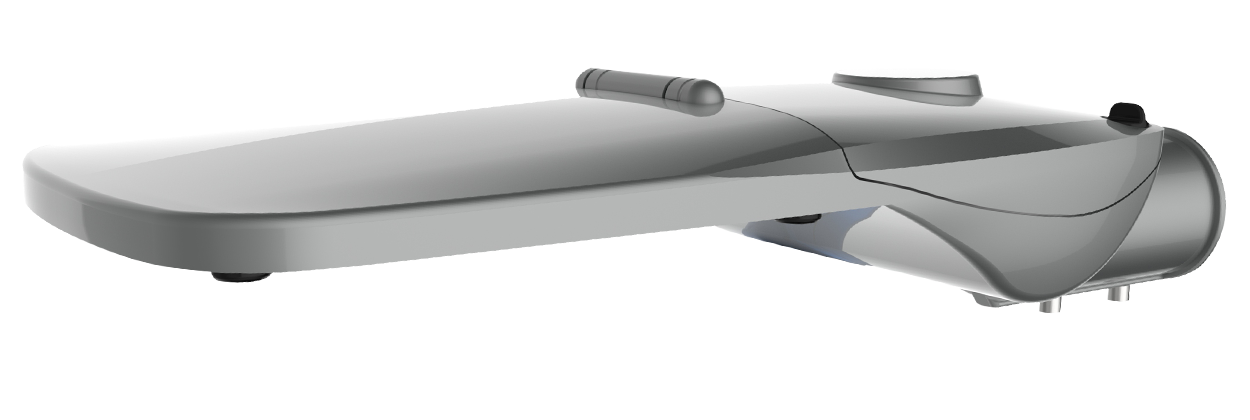

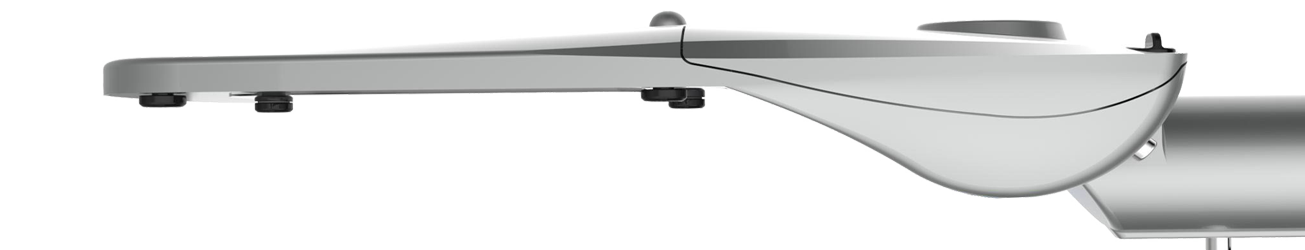

Smooth and glossy processing with natural clean system prevents debris
build-up and minimizes wind loading.

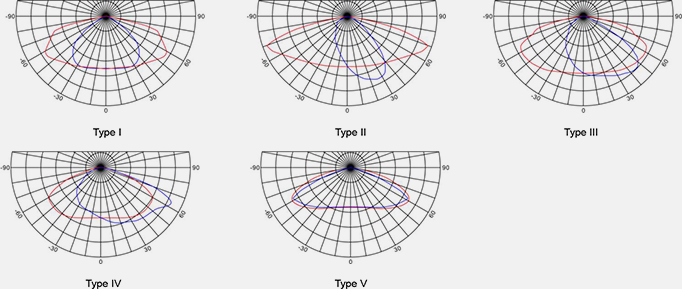

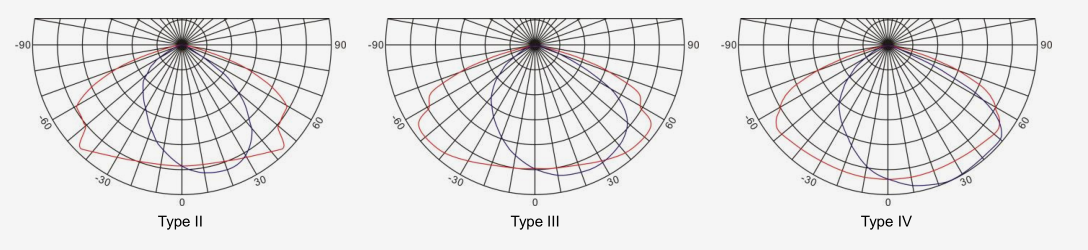

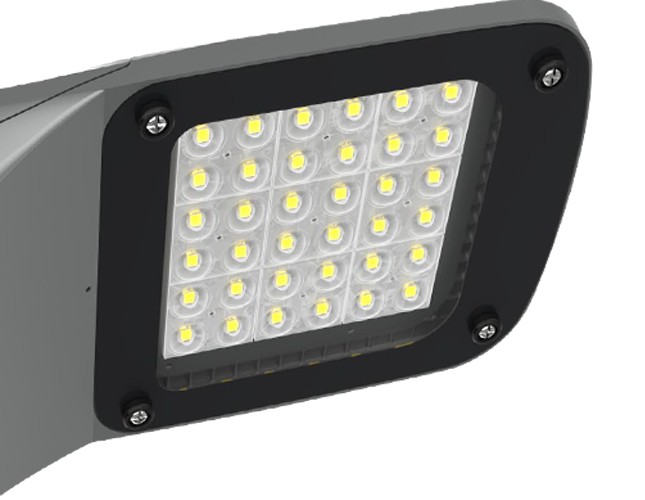

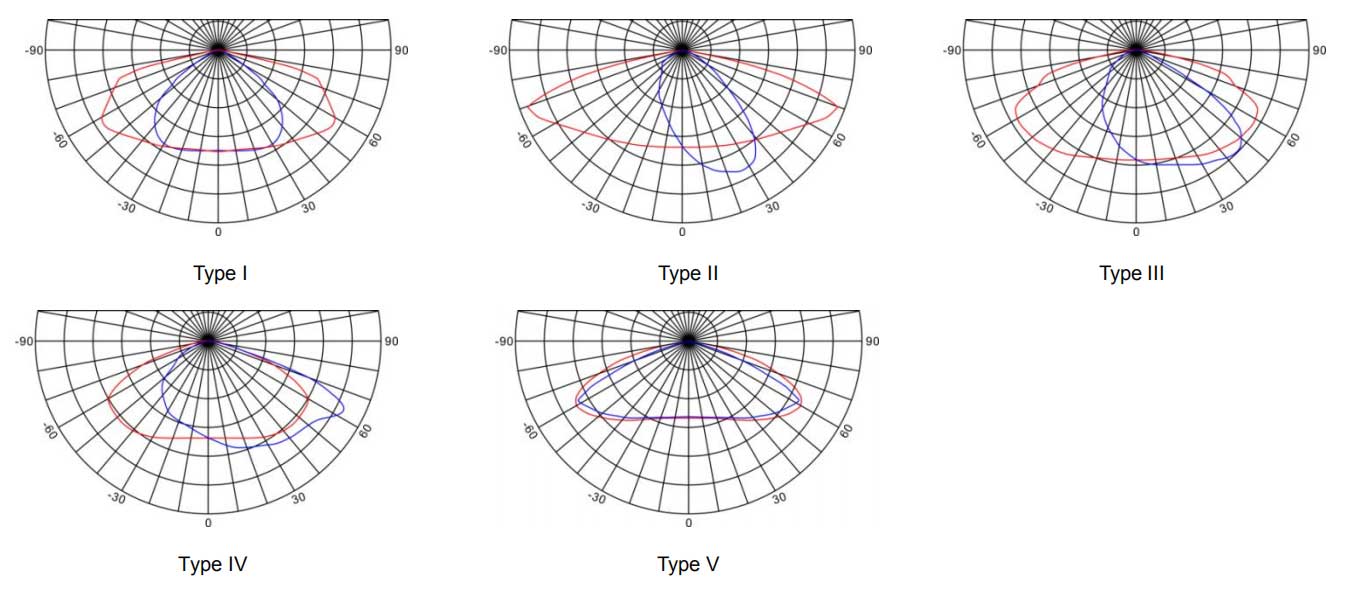

Multi fitted square optic lens with the ultra-clear tempered glass in IESNA Type I, II, III, IV & V full cut-off
optics system provides high uniformity and optimal luminaire spacing, optimizes the light distribution,
eliminate the waste of light, promotes the reasonable and effective using of light.
The ultra-clean tempered glass sealed optical assembly and the electrical
compartment meet dust and moisture rating of IP66 per IEC60529, ranking
IK08 per EN62262, ensure long life and protection from the environment.

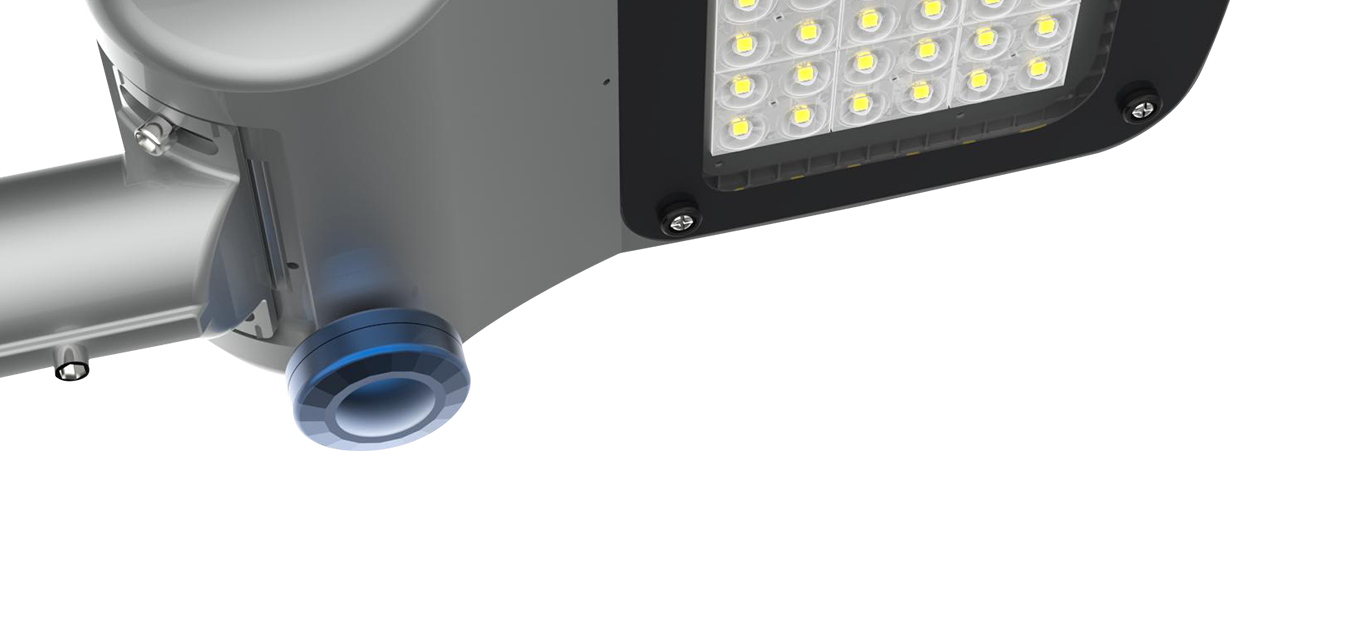

Radar motion sensor is optional for detection of the moving
cars and humans, saving more energy.

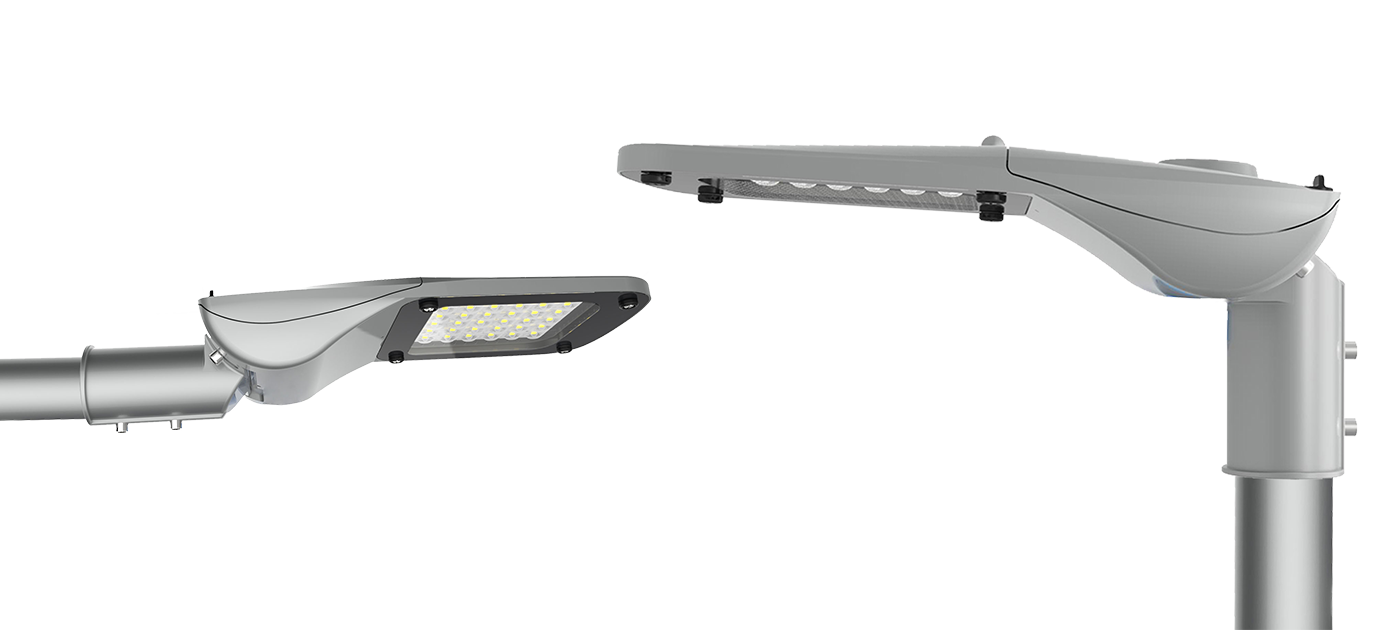

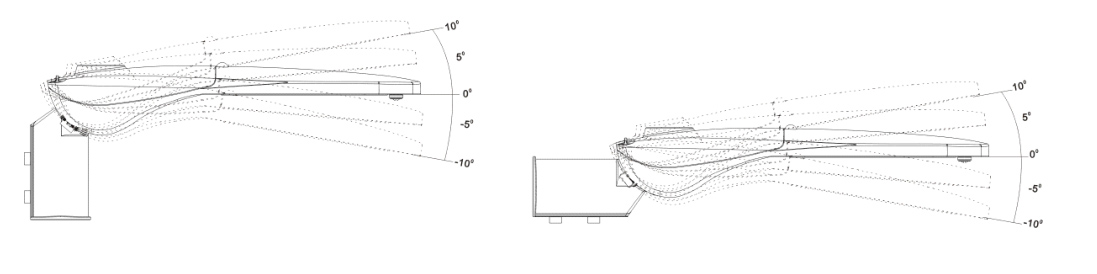

The unique spigot for both post-top and side-entry mounting system fitted to 40-60mm
(O.D.) poles and mast-arms accommodates safety and stability, capable of being adjusted
the degree of +10, +5, 0, -5, -10 for side-entry mounting.
LGA series luminaire is designed for roadway lighting for pedestrian and alley ways, streets and highways.
Area and site lighting for parking lot, playground, sport area, campuses etc.
Roadways
Sports grounds
Squares
Parking lots
| Name | LGAmini | LGA medium | LGA | LGA max | ||||||
| Model # | LGA30 | LGA40 | LGA50 | LGA60 | LGA80 | LGA100 | LGA120 | LGA150 | LGA180 | LGA200 |
| Number of LEDs (pcs) | 96 | 96 | 96 | 144 | 144 | 144 | 192 | 192 | 320 | 320 |
| LED driving current (mA) | 60 | 70 | 80 | 70 | 90 | 110 | 100 | 120 | 80 | 100 |
| Rated Power (W) | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Input Voltage (V) | 220-240Vac, 50/60Hz, Class 1 or Class II (12/24VDC available) | |||||||||
| Power Factor & THD | PF>0.95, THD≤15% | |||||||||
| Surge Protection | 10KV/20KV | |||||||||
| Name | LGAmini | LGA medium | LGA | LGA max | ||||||
| Model # | LGA30 | LGA40 | LGA50 | LGA60 | LGA80 | LGA100 | LGA120 | LGA150 | LGA180 | LGA200 |
| Number of LEDs (pcs) | 48 | 48 | 48 | 72 | 72 | 72 | 96 | 96 | 160 | 160 |
| LED driving current (mA) | 25 | 34 | 42 | 33 | 44 | 55 | 66 | 82 | 99 | 110 |
| Rated Power (W) | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Input Voltage (V) | 220-240Vac, 50/60Hz, Class 1 or Class II (12/24VDC available) | |||||||||
| Power Factor & THD | PF>0.95, THD≤15% | |||||||||
| Surge Protection | 10KV/20KV | |||||||||
| Cat. No. | Input Voltage (V) | CCT (K) | Rated Lumen (Im) | Rated Power (W) | Efficiency (Im/W) | L70 @25 °C | Driver Life @25 °C |
| LGA30 | 220-240Vac | 4000K/5000K | 3600 | 30 | 120 | >50,000h | >50,000h |
| LGA40 | 220-240Vac | 4000K/5000K | 4800 | 40 | 120 | >50,000h | >50,000h |
| LGA50 | 220-240Vac | 4000K/5000K | 6000 | 50 | 120 | >50,000h | >50,000h |
| LGA60 | 220-240Vac | 4000K/5000K | 7200 | 60 | 120 | >50,000h | >50,000h |
| LGA80 | 220-240Vac | 4000K/5000K | 9600 | 80 | 120 | >50,000h | >50,000h |
| LGA100 | 220-240Vac | 4000K/5000K | 12000 | 100 | 120 | >50,000h | >50,000h |
| LGA120 | 220-240Vac | 4000K/5000K | 14400 | 120 | 120 | >50,000h | >50,000h |
| LGA150 | 220-240Vac | 4000K/5000K | 18000 | 150 | 120 | >50,000h | >50,000h |
| LGA180 | 220-240Vac | 4000K/5000K | 21600 | 180 | 120 | >50,000h | >50,000h |
| LGA200 | 220-240Vac | 4000K/5000K | 24000 | 200 | 120 | >50,000h | >50,000h |
| Cat. No. | Input Voltage (V) | CCT (K) | Rated Lumen (Im) | Rated Power (W) | Efficiency (Im/W) | L70 @25 °C | Driver Life @25 °C |
| LGA30 | 220-240Vac | 4000K/5000K | 4200 | 30 | 140 | >50,000h | >100,000h |
| LGA40 | 220-240Vac | 4000K/5000K | 5600 | 40 | 140 | >50,000h | >100,000h |
| LGA50 | 220-240Vac | 4000K/5000K | 7000 | 50 | 140 | >50,000h | >100,000h |
| LGA60 | 220-240Vac | 4000K/5000K | 8400 | 60 | 140 | >50,000h | >100,000h |
| LGA80 | 220-240Vac | 4000K/5000K | 11200 | 80 | 140 | >50,000h | >100,000h |
| LGA100 | 220-240Vac | 4000K/5000K | 14000 | 100 | 140 | >50,000h | >100,000h |
| LGA120 | 220-240Vac | 4000K/5000K | 16800 | 120 | 140 | >50,000h | >100,000h |
| LGA150 | 220-240Vac | 4000K/5000K | 21000 | 150 | 140 | >50,000h | >100,000h |
| LGA180 | 220-240Vac | 4000K/5000K | 25200 | 180 | 140 | >50,000h | >100,000h |
| LGA200 | 220-240Vac | 4000K/5000K | 28000 | 200 | 140 | >50,000h | >100,000h |

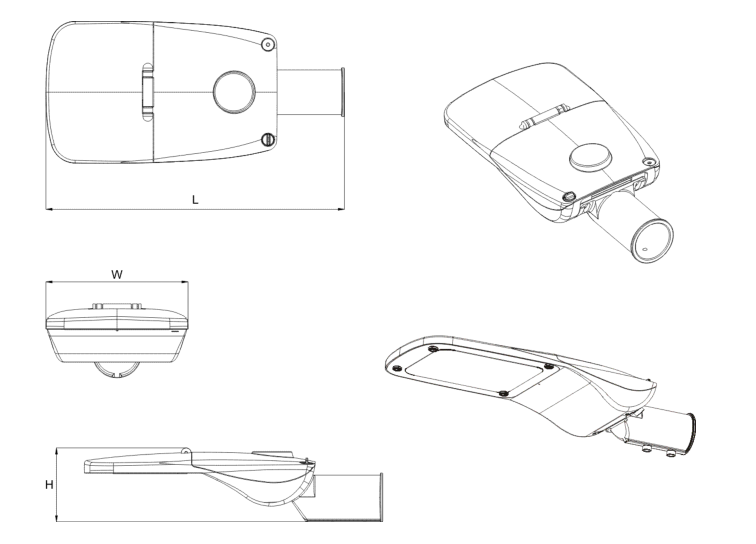

| Model no | Net Weight (KG) | Gross Weight (KG) | Unit dimension (mm) | Packing dimension (mm) |
| LGA30 | 6.8 | 7.3 | 483x230x 100 | 417x267x155 |
| LGA40 | 6.8 | 7.3 | 483x230x100 | 417x267x155 |
| LGA50 | 6.8 | 7.3 | 483x230x 100 | 417x267x155 |
| LGA60 | 8.3 | 8.9 | 548x230x 120 | 482x272 x160 |
| LGA80 | 8.3 | 8.9 | 548x230x 120 | 482x272 x160 |
| LGA100 | 8.3 | 8.9 | 548 x 230x 120 | 482x272 x160 |
| LGA120 | 9.4 | 10.4 | 598x257x129 | 542x302x160 |
| LGA150 | 9.4 | 10.4 | 598x257x 129 | 542x302x160 |
| LGA180 | 10.6 | 11.5 | 655x320x 131 | 612x372x185 |
| LGA200 | 10.6 | 11.5 | 655x320x 131 | 612x372 x185 |
