LED High Bay Light - SPIEGEL series

SPIEGEL series

20% off SPG led high bay light
LED High Bay Light - Spiegel series

SPIEGEL series

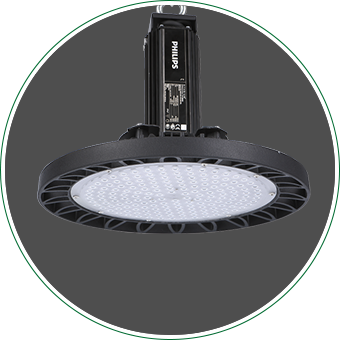

LED UFO High Bay Light

PHILIPS light source & driver

100-240W 5 Yrs Warranty >50,000h life span

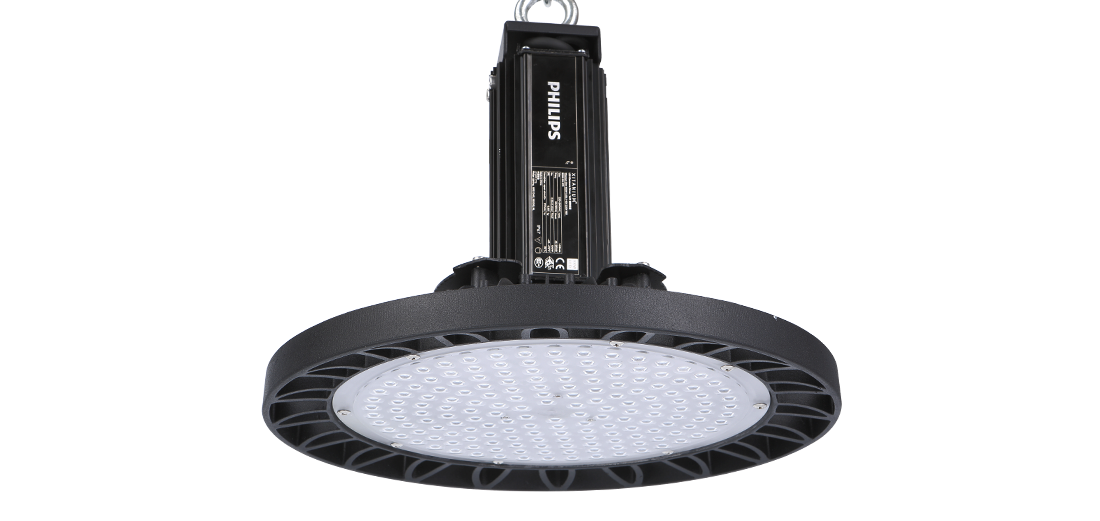

Spiegel Series UFO High Bay Light features adoption of Phillips Light source and Power Supply with high quality, energy conservation, high luminance and long service life. It adopts ADC12 green aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h. The products emits soft and well-distributed light along with brighter effect and great color rendering. And it adopts constant current power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.

LED High Bay Light - Spiegel series
LED High Bay Light - Spiegel series

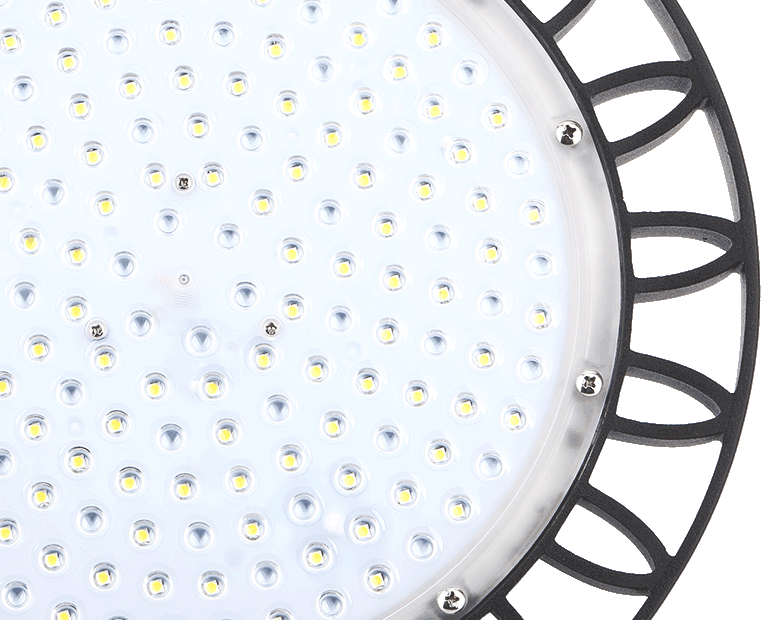

PHILIPS light source :

High-quality light source and energy conservation over 60% compared to
traditional products.
Luminous Efficacy:130lm/W

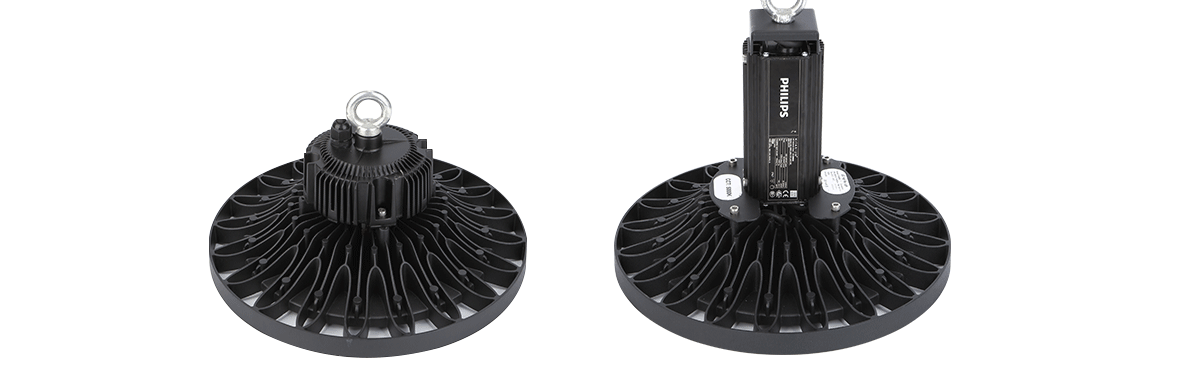

Two choices of the driver

LED High Bay Light - Spiegel series
LED High Bay Light - Spiegel series
LED High Bay Light - Spiegel series

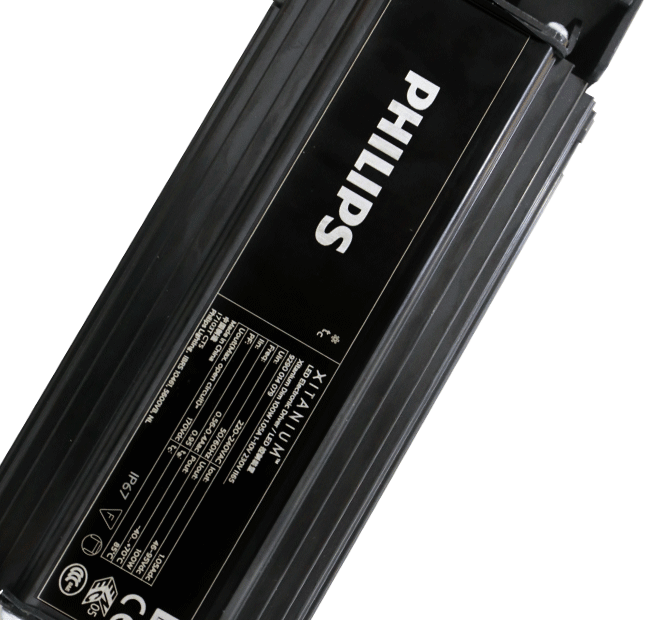

PHILIPS driver

High quality and quick start,
no glare and noise.

LED High Bay Light - Spiegel series

Mean Well driver

LED High Bay Light - Spiegel series

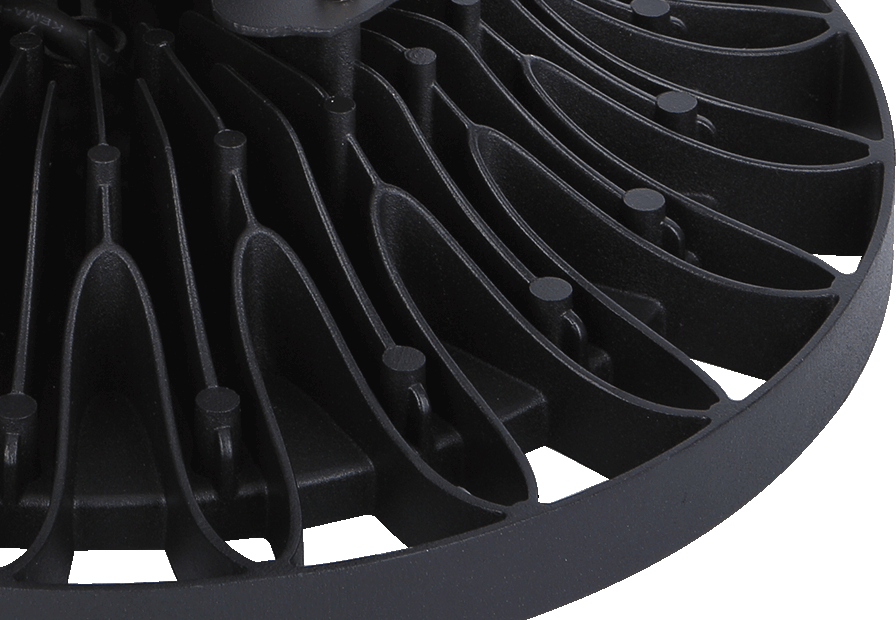

IP65:Made of ADC12 green aluminum, which surface is
handled with special powder to make it more
beautiful and smoother along with better
heat dissipation.

LED High Bay Light - Spiegel series

Beam Angle: 90°

Light Distribution Curve

Application Situations

Being suitable in Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, exhibition Hall and other inflammable and explosive places for lighting.

  • Factory

    Factories

  • Factory

    Highway toll stations

  • Factory

    Supermarkets

  • Factory

    Gas stations

  • Factory

    Chemical workshops

  • Factory

    Storerooms

  • Factory

    Exhibition halls


Product parameter

OEM & ODM are acceptable!

Product Model SPG100 SPG150 SPG200 SPG240
Power 100W 150W 200W 240W
Input Voltage 220-240Vac
Input Current 0.455A 0.682A 0.909A 1.091A
Frequency 50/60Hz
Power Factor 0.95
Total Harmonic Distortion <20%
CCT 3000-6500K
Luminous Flux 13000lm 19500lm 26000lm 31200lm
Efficiency 130 lm/W
CRI  80
Beam Angle 90°
LED Quantity 3030/165pcs 3030/168pcs 3030/279pcs 3030/280pcs
IP Grade IP65
Surge 6KV
Operating Temperature -40~50℃
Lifespan 50000H

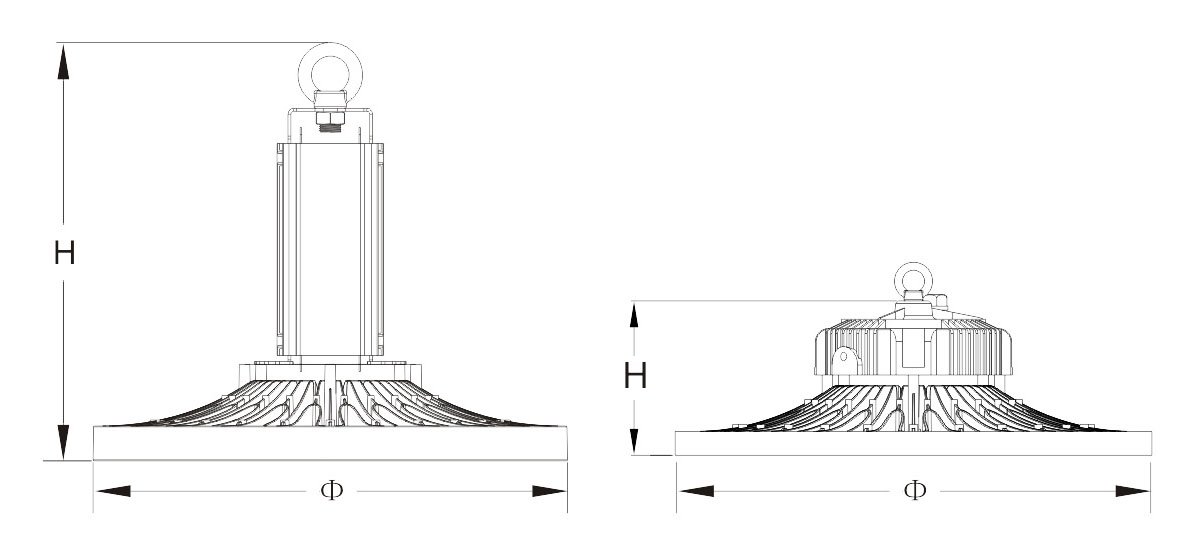

Dimension(D*H) Φ325*140.3 mm Φ450*150 mm
Net Weight 2.84KG 3.8KG
Gross Weight 3.4KG 4.4KG
Carton Size 380x380x210mm 510x510x220mm

Product features

  • 1

    Adoption of high-quality LED as light source and energy conservation above 60% compared to traditional products.

  • 2

    Long lifespan of more than 5 years in normal environment.

  • 3

    Soft and well-distributed interior light along with high luminance. Great color rendering, more authentic performance of object color and more choices of different light colors can meet different environment requirement.

  • 4

    Instant start, no glare and no noise.

  • 5

    Green technology without lead or mercury.

  • 6

    No radio interference and free adjustment of Luminance.
