BBELED® LUTM series was invented with patent rectangular beam and modular design, together with BBE eutectic LED packaging technology, leading the trend of rectangular and modular LED Street Lights industry. The LUTM adopted die-cast frame and extruded heat sink, which assures you the longevity of BBE LED Street Lights.

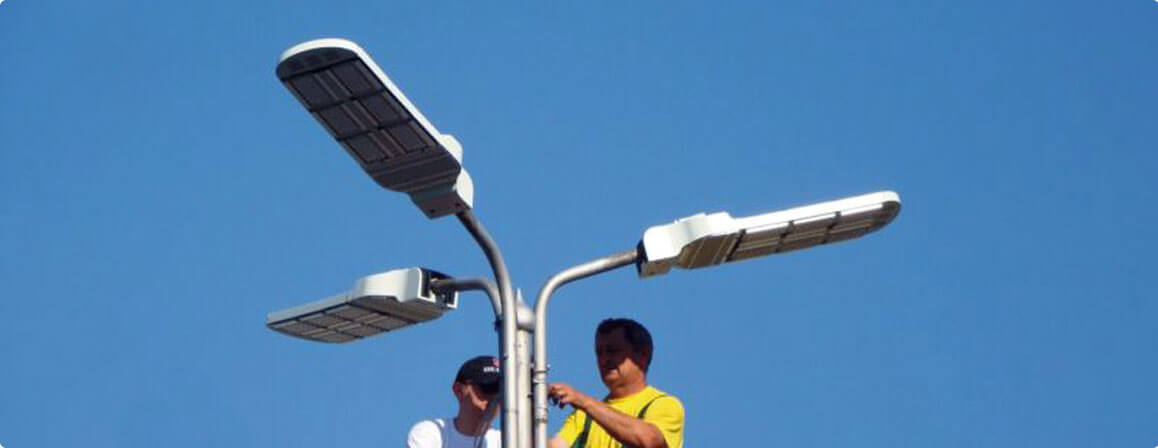

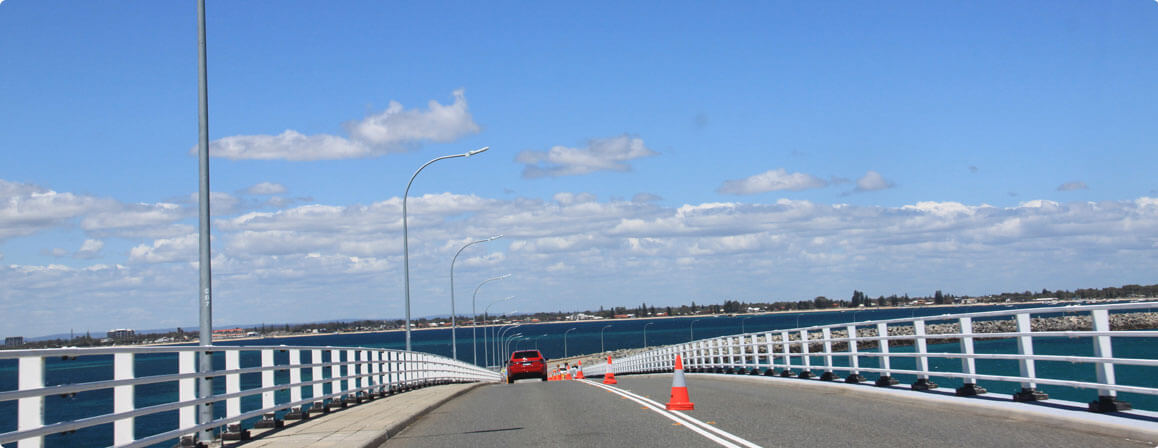

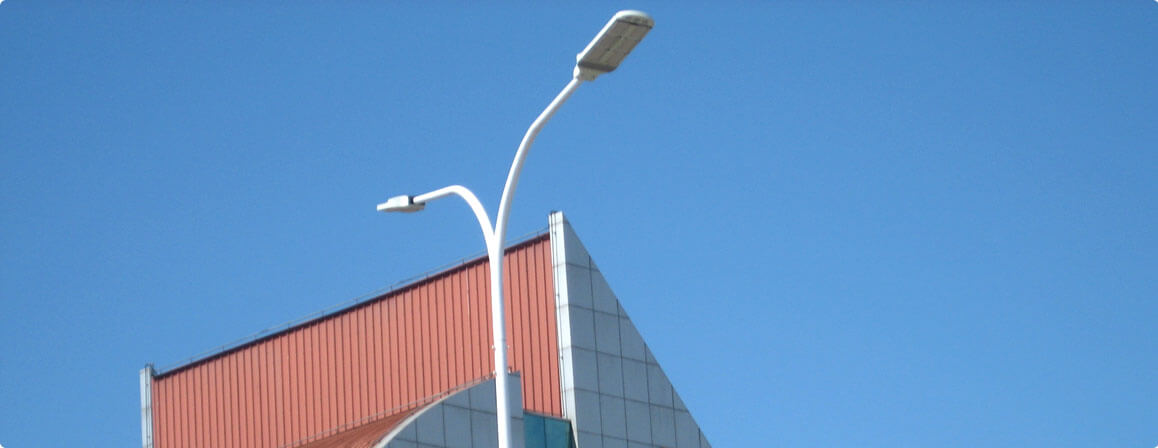

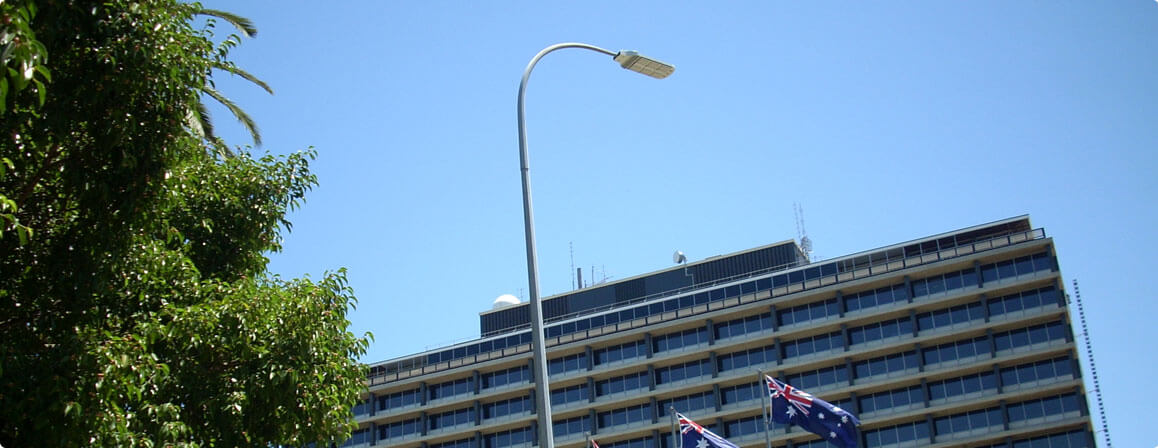

General lighting for all kinds of roadways, avenues, street etc., and even area and site lighting for parking lot,
playground, sport area etc. Available to replace traditional MH or HPS luminaires.
Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling.
Air-flow through anodized heat sink design provides perfect heat management to guarantee long life of the LED.
Modular design with quick connection terminal optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly.Top accessingcover for wiring connection makes easy maintenance and operation.
Mounting system fitted to 40-60mm (O.D.) mast-armsaccommodates safety and stability.Capable of being adjusted the degree of +15, +10, +5, 0.
Electronics and optical sections are independent and separated reducing thermal conductivity between each other, keep the driver out of the heat source from LED.
IP65 (EN60529 compliant) rated to the luminaire

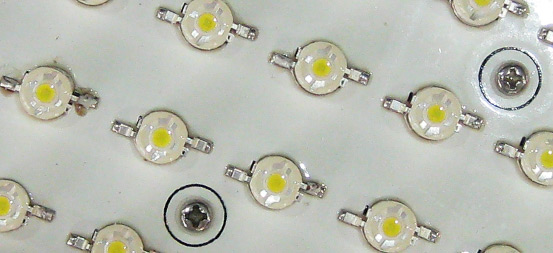

Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (5000-5800K) & Warm white (4000-4500K) with CRI 70 ratedorcustomized CCT LED are available.

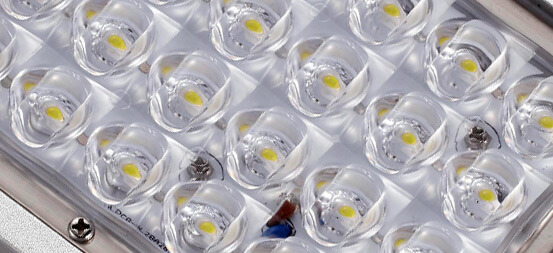

Precise optic lens in high intensity PC material with IESNA Type I, & Type IIIprovides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.
Universal driver is available in 100-240Vac, 50/60Hz, power factor > 90% and THD <20%.
Tool-less 360 degree rotatable twist-lock photocell control ANSI C136.10 compliantis available for options.
CE approved, CB tested by TUV, RoHS compliant
Note: all specifications subject to change without notice.
dimension is in mm (inch), kg(lb)
| LU1 | LU2 | LU4 | LU6 | LU8 | |||||
| L | 598 (23.5”) | 610 (24.0”) | 784 (30.9”) | 958 (37.7”) | 1132 (44.6”) | ||||
| W | 265 (10.4”) | 320 (12.6”) | 320 (12.6”) | 320 (12.6”) | 320 (12.6”) | ||||
| H | 203 (8.0”) | 144 (5.7”) | 144 (5.7”) | 144 (5.7”) | 144 (5.7”) | ||||
| Weight | 5.3 (11.7lb) | 9.7 (21.4lb) | 12.4 (27.3lb) | 14.8 (32.6lb) | 17.4 (38.4lb) | ||||
| Shipping data | |||||||||
| CBM | 0.065 | 0.07 | 0.086 | 0.104 | 0.138 | ||||
| G.W. | 7.1(15.7lb) | 11.4 (25.1lb) | 14.4(31.7lb) | 17.2 (37.9lb) | 20.3 (44.8lb) | ||||
| Series | #of module | - | Voltage | CCT | Optics | LED Bin | - | Options |
| LU | 2 | - | E | PW | 1S | L1 | - | PC |
| LU | 1 2 4 6 8 |
E: 100-240Vac D11: 12Vdc D21: 24Vdc |
NW: 4000-4500K PW: 5000-5800K |
VS: 120 × 60 1S: 140 × 60 3S: Type 3S |
L1: Level 1 (standard) L4: Level 4 (hi-efficiency) |
PR2: photocell receptacle PC2: photocell control |
*Consult your sales representative for the options and the lead time will be varied depending on the options selected.
1: Only available for LU1/2/4.
2: Not available for voltage D (12/24Vdc)
| Number of LEDs | LED drive current(mA) | Rated Power(W) | Total Current (Amp) | |||||
| 120V | 220V | 230V | 240V | |||||
| LU1 | 28 | 350 | 30 | 0.254 | 0.151 | 0.146 | 0.142 | |
| LU2 | 56 | 350 | 70 | 0.569 | 0.314 | 0.3 | 0.29 | |
| LU4 | 112 | 350 | 140 | 1.11 | 0.62 | 0.59 | 0.57 | |
| LU6 | 168 | 350 | 210 | 1.69 | 0.937 | 0.9 | 0.86 | |
| LU8 | 224 | 350 | 280 | 2.29 | 1.23 | 1.19 | 1.14 | |
| IESNA Type I | |
 |
 |
| VS | 1S |
| IESNA Type III | |
 |
|
| 3S | |
| Cat No. | CCT | Power (W) | Initial Lumen (lm) | Efficiency (LPW) | Optics | LED Bin | IES file | IES date (mm/dd/yy) |
| LU1-EPW1SL1 | 5000-5800K | 37 | 3286 | 89 | 1S | L1 | LU1-EPW1SL1.ies | 03/05/14 |
| LU1-EPW3SL1 | 5000-5800K | 37 | 3377 | 91 | 3S | L1 | LU1-EPW3SL1.ies | 04/30/14 |
| LU1-EPW1SL4 | 5000-5800K | 37 | 3582 | 97 | 1S | L4 | LU1-EPW1SL4.ies | 04/28/14 |
| LU1-EPW3SL4 | 5000-5800K | 37 | 3681 | 99 | 3S | L4 | LU1-EPW3SL4.ies | 04/28/14 |
| LU2-EPW1SL1 | 5000-5800K | 67 | 5912 | 88 | 1S | L1 | LU2-EPW1SL1.ies | 03/11/14 |
| LU2-EPW3SL1 | 5000-5800K | 67 | 6195 | 92 | 3S | L1 | LU2-EPW3SL1.ies | 04/30/14 |
| LU2-EPW1SL4 | 5000-5800K | 67 | 6546 | 98 | 1S | L4 | LU2-EPW1SL4.ies | 04/21/14 |
| LU2-EPW3SL4 | 5000-5800K | 67 | 6777 | 101 | 3S | L4 | LU2-EPW3SL4.ies | 04/28/14 |
| LU4-EPW1SL1 | 5000-5800K | 131 | 11824 | 90 | 1S | L1 | LU4-EPW1SL1.ies | 03/11/14 |
| LU4-EPW3SL1 | 5000-5800K | 131 | 12390 | 95 | 3S | L1 | LU4-EPW3SL1.ies | 04/30/14 |
| LU4-EPW1SL4 | 5000-5800K | 131 | 12808 | 98 | 1S | L4 | LU4-EPW1SL4.ies | 04/21/14 |
| LU4-EPW1SL4 | 5000-5800K | 131 | 13262 | 101 | 3S | L4 | LU4-EPW3SL4.ies | 04/28/14 |
| LU6-EPW1SL1 | 5000-5800K | 194 | 17603 | 91 | 1S | L1 | LU6-EPW1SL1.ies | 03/11/14 |
| LU6-EPW3SL1 | 5000-5800K | 194 | 18446 | 95 | 3S | L1 | LU6-EPWSL1.ies | 04/30/14 |
| LU6-EPW1SL4 | 5000-5800K | 194 | 19297 | 100 | 1S | L4 | LU6-EPW1SL4.ies | 04/21/14 |
| LU6-EPW3SL4 | 5000-5800K | 194 | 19981 | 103 | 3S | L4 | LU6-EPW3SL4.ies | 04/28/14 |
| LU8-EPW1SL1 | 5000-5800K | 266 | 23642 | 89 | 1S | L1 | LU8-EPW1SL1.ies | 03/11/14 |
| LU8-EPW3SL1 | 5000-5800K | 266 | 24774 | 93 | 3S | L1 | LU8-EPW3SL1.ies | 04/30/14 |
| LU8-EPW1SL1 | 5000-5800K | 266 | 25988 | 98 | 1S | L4 | LU8-EPW1SL4.ies | 04/22/14 |
| LU8-EPW3SL1 | 5000-5800K | 266 | 26909 | 101 | 3S | L4 | LU8-EPW3SL4.ies | 04/28/14 |
*The above data is based on BBELED lab test result, and is kept updating, changes will be not informed.
