BBELED® LSTM series was created for lighting our streets and highways, reached the lighting design goals.
Powered by BBELED® BAR module engine, and featuring innovative thermal management design.
The LSTM offers exceptional performance and value, delivers outstand illumination and optimum efficiency.

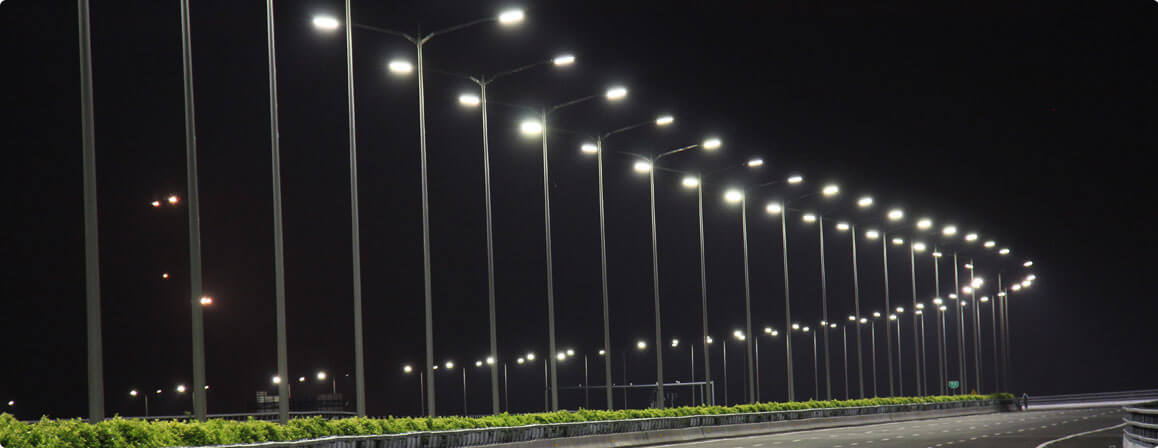

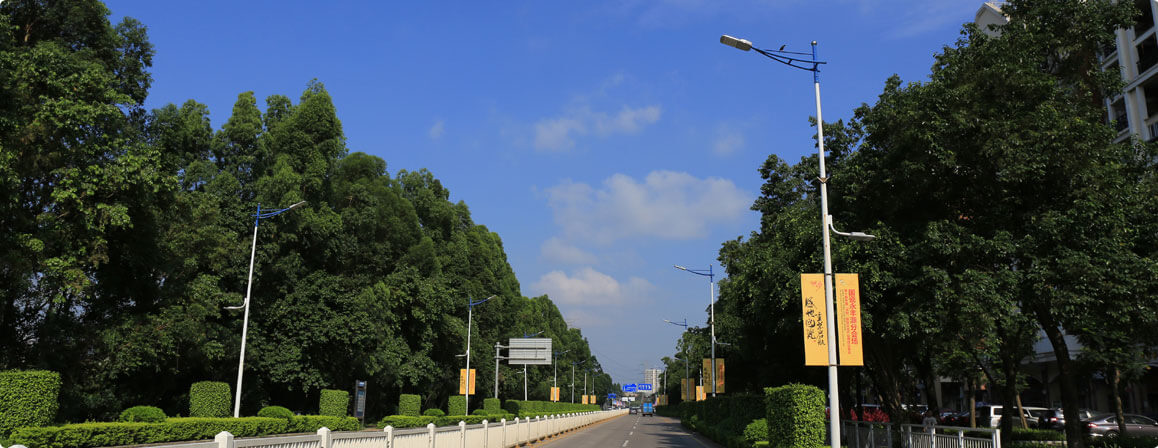

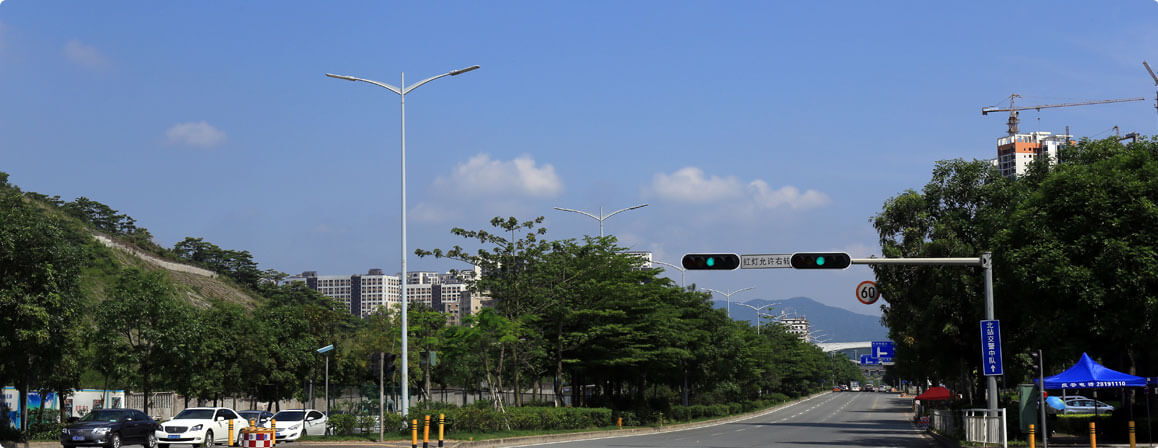

General lighting for all roadways, avenues, street etc., area and site lighting for parking lot, playground, sport area etc.
Available to replace traditional MH or HPS luminaires up to 600W.
Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling.
Air-flow through heat sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading.
Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly.
Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms accommodates safety and stability. Capable of being adjusted the degree of +15, +10, +5, 0, -5.
Tool-less access to the down-opening driver door makes easy maintenance and operation.
IP65 (EN60529 compliant) rated to the luminaire.

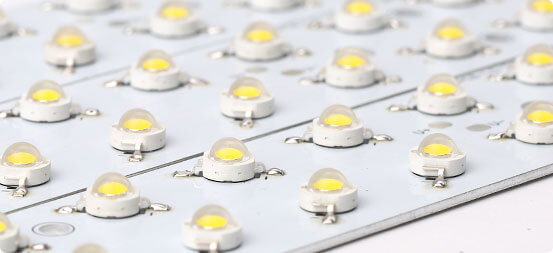

Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (5000-5800K) & Warm white (4000-4500K) with CRI 70 rated or customized CCT LED are available. Light efficiency is up to 110lm/W.

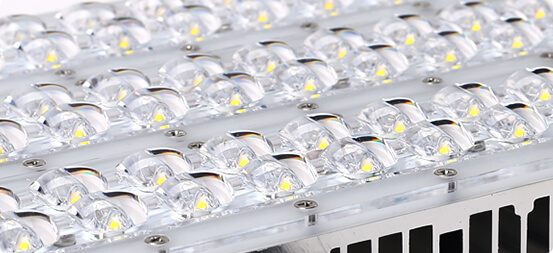

Precise optic lens in high intensity PC material with IESNA Type I, Type II & Type III provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.
Universal driver is available in 100-240Vac, 50/60Hz, power factor > 95% and THD < 15%, IP67 waterproof.
Tool-less 360 degree rotatable twist-lock photocell control ANSI C136.10 compliant is available for options.
0-10V or PWM dimming is available for options, control by others.
CE approved, CB tested by TUV, RoHS compliant.
5 years limited
Note: all specifications subject to change without notice.
| LS1 | LS2 | LS3 | LS4 | LS5 | LS6 | LS7 | LS8 | ||
| L | 493 (19.4’) | 558 (22.0’) | 623 (24.5’) | 688 (27.1’) | 753 (29.7’) | 818 (32.2’) | 883 (34.8’) | 948 (37.3’) | |
| W | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | 369 (14.5’) | |
| H | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | 118 (4.7’) | |
| Weight | 5.4 (11.9lb) | 6.4 (14.1lb) | 7.3 (16.1lb) | 8.4 (18.5lb) | 9.9 (21.8lb) | 11.0 (24.3lb) | 11.5 (25.4lb) | 13.2 (29.1lb) | |
| Shipping data | |||||||||
| CBM | 0.051 | 0.056 | 0.062 | 0.067 | 0.072 | 0.077 | 0.083 | ||
| G.W. | 8.8 (19.4lb) | 9.7 (21.4lb) | 11 (24.25lb) | 12.5 (27.6lb) | 13.8 (30.4lb) | 14.4 (31.8lb) | 16.2 (35.7lb) | ||
| Series | #of module | - | Voltage | CCT | Optics | LED level | - | Options |
| LS | 2 | - | E | PW | 2ML | L1 | - | PC |
| LS | 1 2 3 4 5 6 7 8 |
E: 100-240Vac D1: 12/24Vdc |
NW: 4000-4500K PW: 5000-5800K |
VS: 120 × 60 1S: 140 × 60 2MS: Type 2MS 2ML: Type 2ML 3M: Type 3M |
L1: Level 1 (standard) L4: Level 4 (hi-efficiency) |
PR2: photocell receptacle PC2: photocell control VD2: 0-10V dimming PD2: PWM dimming |
*Consult your sales representative for the options and the lead time will be varied depending on the options selected.
1: Only available for LS1/2/3/4.
2: Not available for voltage D (12/24Vdc)
| Number of LEDs | LED drive current(mA) | Rated Power(W) | Total Current (Amp) | |||||
| 120V | 220V | 230V | 240V | |||||
| LS1 | 24 | 350 | 30 | 0.257 | 0.143 | 0.138 | 0.133 | |
| LS2 | 48 | 350 | 60 | 0.476 | 0.267 | 0.257 | 0.249 | |
| LS3 | 72 | 350 | 90 | 0.71 | 0.396 | 0.382 | 0.368 | |
| LS4 | 96 | 350 | 120 | 0.927 | 0.51 | 0.49 | 0.473 | |
| LS5 | 120 | 350 | 150 | 1.19 | 0.666 | 0.642 | 0.618 | |
| LS6 | 144 | 350 | 180 | 1.44 | 0.803 | 0.774 | 0.746 | |
| LS7 | 168 | 350 | 210 | 1.656 | 0.917 | 0.882 | 0.851 | |
| LS8 | 192 | 350 | 240 | 1.869 | 1.024 | 0.98 | 0.95 | |

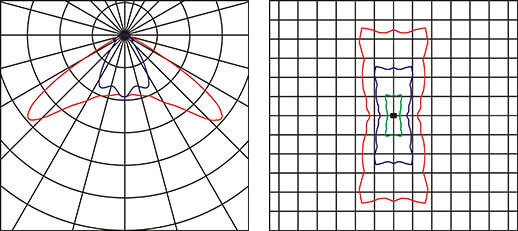

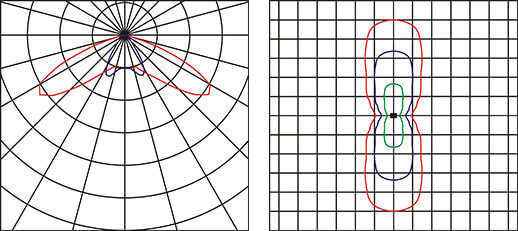

| IESNA Type I | |
 |
 |
| VS | 1S |

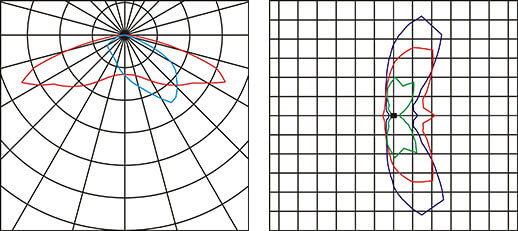

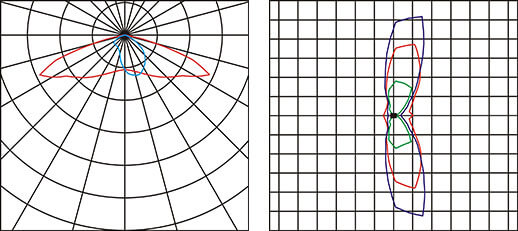

| IESNA Type II | |
 |
 |
| 2MS | 2ML |

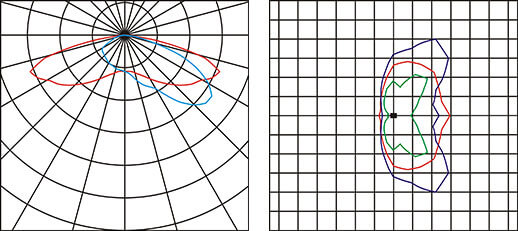

| IESNA Type III | |
 |
|
| 3M | |
| Cat No. | CCT | Power (W) | Initial Lumen (lm) | Efficiency (LPW) | Optics | LED level | IES file | IES Date (MM/DD/YY) |
| LS1-EPW1SL1 | 5000-5800K | 31 | 2616 | 84 | 1S | L1 | LS1-EPW1SL1.ies | 02/24/14 |
| LS1-EPW2MSL1 | 5000-5800K | 31 | 2845 | 92 | 2MS | L1 | LS1-EPW2MSL1.ies | 04/01/14 |
| LS1-EPW2MLL1 | 5000-5800K | 31 | 2836 | 91 | 2ML | L1 | LS1-EPW2MLL1.ies | 04/05/14 |
| LS1-EPW3ML1 | 5000-5800K | 31 | 2807 | 91 | 3M | L1 | LS1-EPW3ML1.ies | 04/03/14 |
| LS1-EPW1SL4 | 5000-5800K | 31 | 2854 | 92 | 1S | L4 | LS1-EPW1SL4.ies | 04/28/14 |
| LS1-EPW2MSL4 | 5000-5800K | 31 | 3053 | 98 | 2MS | L4 | LS1-EPW2MSL4.ies | 04/27/14 |
| LS1-EPW2MLL4 | 5000-5800K | 31 | 3009 | 97 | 2ML | L4 | LS1-EPW2MLL4.ies | 04/29/14 |
| LS1-EPW3ML4 | 5000-5800K | 31 | 3046 | 98 | 3M | L4 | LS1-EPW3ML4.ies | 04/29/14 |
| LS2-EPW1SL1 | 5000-5800K | 56 | 5232 | 93 | 1S | L1 | LS2-EPW1SL1.ies | 02/24/14 |
| LS2-EPW2MSL1 | 5000-5800K | 56 | 5689 | 102 | 2MS | L1 | LS2-EPW2MSL1.ies | 04/01/14 |
| LS2-EPW2MLL1 | 5000-5800K | 56 | 5673 | 101 | 2ML | L1 | LS2-EPW2MLL1.ies | 04/05/14 |
| LS2-EPW3ML1 | 5000-5800K | 56 | 5614 | 100 | 3M | L1 | LS2-EPW3ML1.ies | 04/03/14 |
| LS2-EPW1SL4 | 5000-5800K | 56 | 5715 | 102 | 1S | L4 | LS2-EPW1SL4.ies | 04/28/14 |
| LS2-EPW2MSL4 | 5000-5800K | 56 | 6113 | 109 | 2MS | L4 | LS2-EPW2MSL4.ies | 04/27/14 |
| LS2-EPW2MLL4 | 5000-5800K | 56 | 6026 | 108 | 2ML | L4 | LS2-EPW2MLL4.ies | 04/29/14 |
| LS2-EPW3ML4 | 5000-5800K | 56 | 6100 | 109 | 3M | L4 | LS2-EPW3ML4.ies | 04/29/14 |
| LS3-EPW1SL1 | 5000-5800K | 86 | 7759 | 90 | 1S | L1 | LS3-EPW1SL1.ies | 02/24/14 |
| LS3-EPW2MSL1 | 5000-5800K | 86 | 8489 | 99 | 2MS | L1 | LS3-EPW2MSL1.ies | 04/01/14 |
| LS3-EPW2MLL1 | 5000-5800K | 86 | 8465 | 98 | 2ML | L1 | LS3-EPW2MLL1.ies | 04/05/14 |
| LS3-EPW3ML1 | 5000-5800K | 86 | 8376 | 97 | 3M | L1 | LS3-EPW3ML1.ies | 04/03/14 |
| LS3-EPW1SL4 | 5000-5800K | 86 | 8503 | 99 | 1S | L4 | LS3-EPW1SL4.ies | 04/28/14 |
| LS3-EPW2MSL4 | 5000-5800K | 86 | 9094 | 106 | 2MS | L4 | LS3-EPW2MSL4.ies | 04/27/14 |
| LS3-EPW2MLL4 | 5000-5800K | 86 | 8965 | 104 | 2ML | L4 | LS3-EPW2MLL4.ies | 04/29/14 |
| LS3-EPW3ML4 | 5000-5800K | 86 | 9075 | 106 | 3M | L4 | LS3-EPW3ML4.ies | 04/29/14 |
| LS4-EPW1SL1 | 5000-5800K | 110 | 10284 | 94 | 1S | L1 | LS4-EPW1SL1.ies | 02/24/14 |
| LS4-EPW2MSL1 | 5000-5800K | 110 | 11321 | 103 | 2MS | L1 | LS4-EPW2MSL1.ies | 04/01/14 |
| LS4-EPW2MLL1 | 5000-5800K | 110 | 11288 | 103 | 2ML | L1 | LS4-EPW2MLL1.ies | 04/05/14 |
| LS4-EPW3ML1 | 5000-5800K | 110 | 11170 | 102 | 3M | L1 | LS4-EPW3ML1.ies | 04/03/14 |
| LS4-EPW1SL4 | 5000-5800K | 110 | 11265 | 102 | 1S | L4 | LS4-EPW1SL4.ies | 04/28/14 |
| LS4-EPW2MSL4 | 5000-5800K | 110 | 12049 | 110 | 2MS | L4 | LS4-EPW2MSL4.ies | 04/27/14 |
| LS4-EPW2MLL4 | 5000-5800K | 110 | 11877 | 108 | 2ML | L4 | LS4-EPW2MLL4.ies | 04/29/14 |
| LS4-EPW3ML4 | 5000-5800K | 110 | 12023 | 109 | 3M | L4 | LS4-EPW3ML4.ies | 04/29/14 |
| LS5-EPW1SL1 | 5000-5800K | 142 | 12931 | 91 | 1S | L1 | LS5-EPW1SL1.ies | 02/24/14 |
| LS5-EPW2MSL1 | 5000-5800K | 142 | 14224 | 100 | 2MS | L1 | LS5-EPW2MSL1.ies | 04/01/14 |
| LS5-EPW2MLL1 | 5000-5800K | 142 | 14182 | 100 | 2ML | L1 | LS5-EPW2MLL1.ies | 04/05/14 |
| LS5-EPW3ML1 | 5000-5800K | 142 | 14034 | 99 | 3M | L1 | LS5-EPW3ML1.ies | 04/03/14 |
| LS5-EPW1SL4 | 5000-5800K | 142 | 14243 | 100 | 1S | L4 | LS5-EPW1SL4.ies | 04/28/14 |
| LS5-EPW2MSL4 | 5000-5800K | 142 | 15235 | 107 | 2MS | L4 | LS5-EPW2MSL4.ies | 04/27/14 |
| LS5-EPW2MLL4 | 5000-5800K | 142 | 15017 | 106 | 2ML | L4 | LS5-EPW2MLL4.ies | 04/29/14 |
| LS5-EPW3ML4 | 5000-5800K | 142 | 15202 | 107 | 3M | L4 | LS5-EPW3ML4.ies | 04/29/14 |
| LS6-EPW1SL1 | 5000-5800K | 171 | 15517 | 91 | 1S | L1 | LS6-EPW1SL1.ies | 02/24/14 |
| LS6-EPW2MSL1 | 5000-5800K | 171 | 16982 | 99 | 2MS | L1 | LS6-EPW2MSL1.ies | 04/01/14 |
| LS6-EPW2MLL1 | 5000-5800K | 171 | 16932 | 99 | 2ML | L1 | LS6-EPW2MLL1.ies | 04/05/14 |
| LS6-EPW3ML1 | 5000-5800K | 171 | 16755 | 98 | 3M | L1 | LS6-EPW3ML1.ies | 04/03/14 |
| LS6-EPW1SL4 | 5000-5800K | 171 | 17005 | 99 | 1S | L4 | LS6-EPW1SL4.ies | 04/28/14 |
| LS6-EPW2MSL4 | 5000-5800K | 171 | 18189 | 106 | 2MS | L4 | LS6-EPW2MSL4.ies | 04/27/14 |
| LS6-EPW2MLL4 | 5000-5800K | 171 | 17930 | 105 | 2ML | L4 | LS6-EPW2MLL4.ies | 04/29/14 |
| LS6-EPW3ML4 | 5000-5800K | 171 | 18150 | 106 | 3M | L4 | LS6-EPW3ML4.ies | 04/29/14 |
| LS7-EPW1SL1 | 5000-5800K | 195 | 18103 | 93 | 1S | L1 | LS7-EPW1SL1.ies | 02/24/14 |
| LS7-EPW2MSL1 | 5000-5800K | 195 | 19808 | 102 | 2MS | L1 | LS7-EPW2MSL1.ies | 04/02/14 |
| LS7-EPW2MLL1 | 5000-5800K | 195 | 19751 | 101 | 2ML | L1 | LS7-EPW2MLL1.ies | 04/05/14 |
| LS7-EPW3ML1 | 5000-5800K | 195 | 19545 | 100 | 3M | L1 | LS7-EPW3ML1.ies | 04/03/14 |
| LS7-EPW1SL4 | 5000-5800K | 195 | 19814 | 102 | 1S | L4 | LS7-EPW1SL4.ies | 04/28/14 |
| LS7-EPW2MSL4 | 5000-5800K | 195 | 21193 | 109 | 2MS | L4 | LS7-EPW2MSL4.ies | 04/28/14 |
| LS7-EPW2MLL4 | 5000-5800K | 195 | 20891 | 107 | 2ML | L4 | LS7-EPW2MLL4.ies | 04/29/14 |
| LS7-EPW3ML4 | 5000-5800K | 195 | 21148 | 108 | 3M | L4 | LS7-EPW3ML4.ies | 04/29/14 |
| LS8-EPW1SL1 | 5000-5800K | 222 | 20568 | 93 | 1S | L1 | LS8-EPW1SL1.ies | 02/24/14 |
| LS8-EPW2MSL1 | 5000-5800K | 222 | 22642 | 102 | 2MS | L1 | LS8-EPW2MSL1.ies | 04/02/14 |
| LS8-EPW2MLL1 | 5000-5800K | 222 | 22576 | 102 | 2ML | L1 | LS8-EPW2MLL1.ies | 04/05/14 |
| LS8-EPW3ML1 | 5000-5800K | 222 | 22340 | 101 | 3M | L1 | LS8-EPW3ML1.ies | 04/04/14 |
| LS8-EPW1SL4 | 5000-5800K | 222 | 22530 | 101 | 1S | L4 | LS8-EPW1SL4.ies | 04/28/14 |
| LS8-EPW2MSL4 | 5000-5800K | 222 | 24098 | 109 | 2MS | L4 | LS8-EPW2MSL4.ies | 04/28/14 |
| LS8-EPW2MLL4 | 5000-5800K | 222 | 23754 | 107 | 2ML | L4 | LS8-EPW2MLL4.ies | 04/29/14 |
| LS8-EPW3ML4 | 5000-5800K | 222 | 24046 | 108 | 3M | L4 | LS8-EPW3ML4.ies | 04/29/14 |
*The above data is based on BBELED lab test result, and is kept updating, changes will be not informed.
