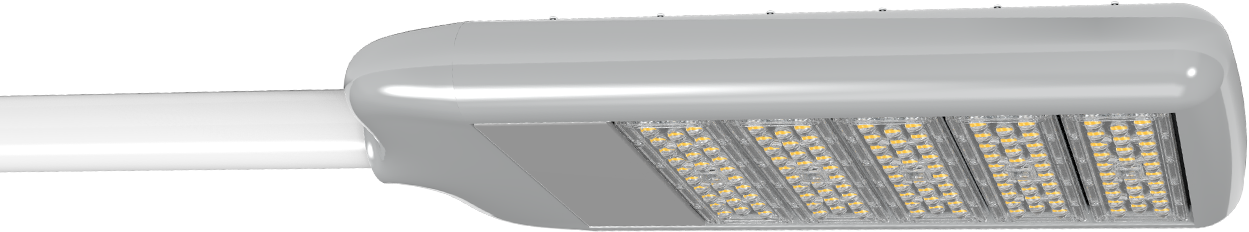

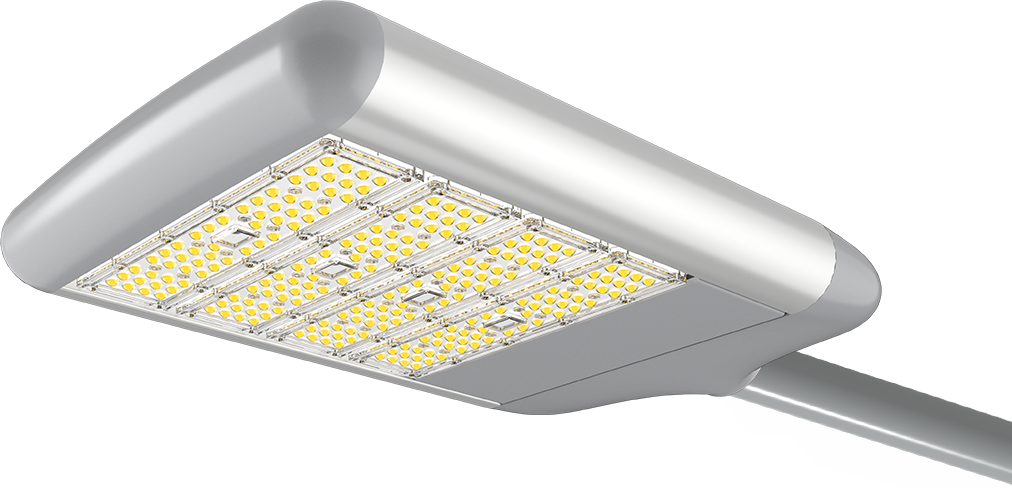

LSC Series
LED Roadway Lighting LuminaireStandard: 130lm/W
Hi-efficiency: 150lm/W
Standard: 130lm/W
Hi-efficiency: 150lm/W
Input Voltage: 220-240Vac 50/60Hz
Power: 60W/120W/180W/240W/300W

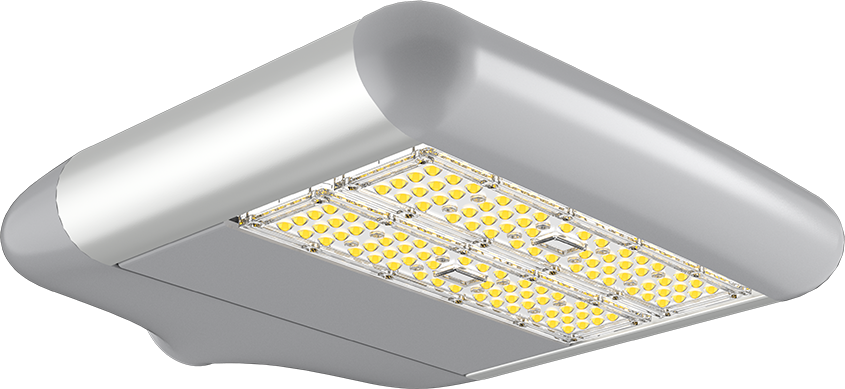

The compact design optimizes the construction, provides a very cost-efficient
product and guarantee the proper performance and durability.

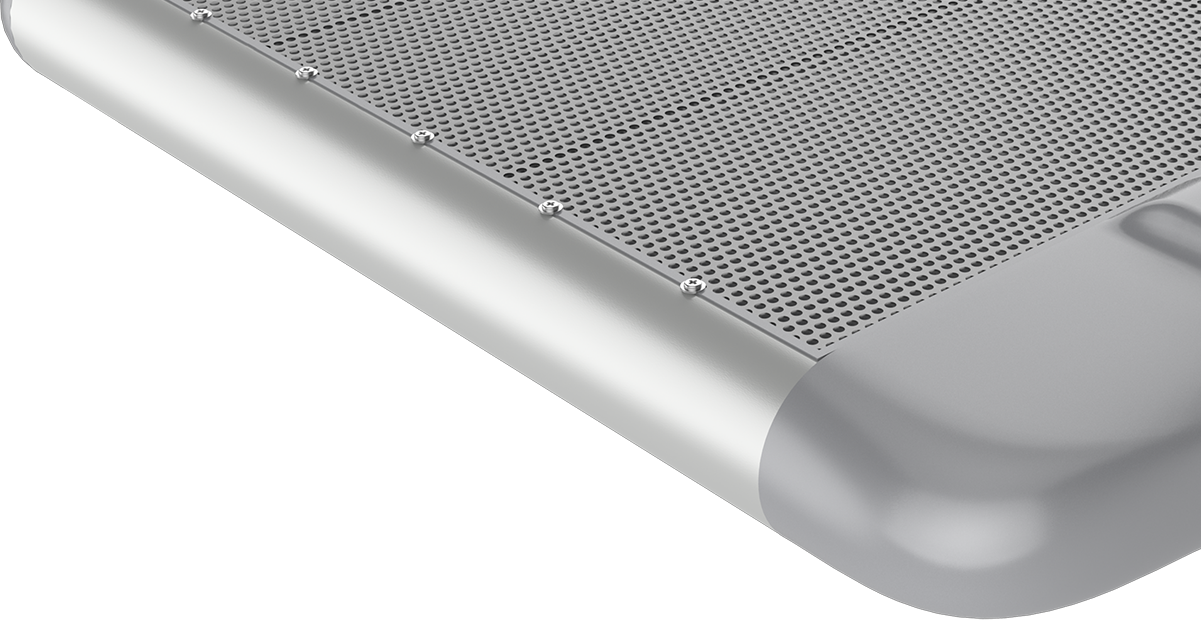

Pure aluminum heat sink is low weight and provides perfect heat management,
guarantees the Tj temperature of LED chip less than 80C @ Ta=25C for long

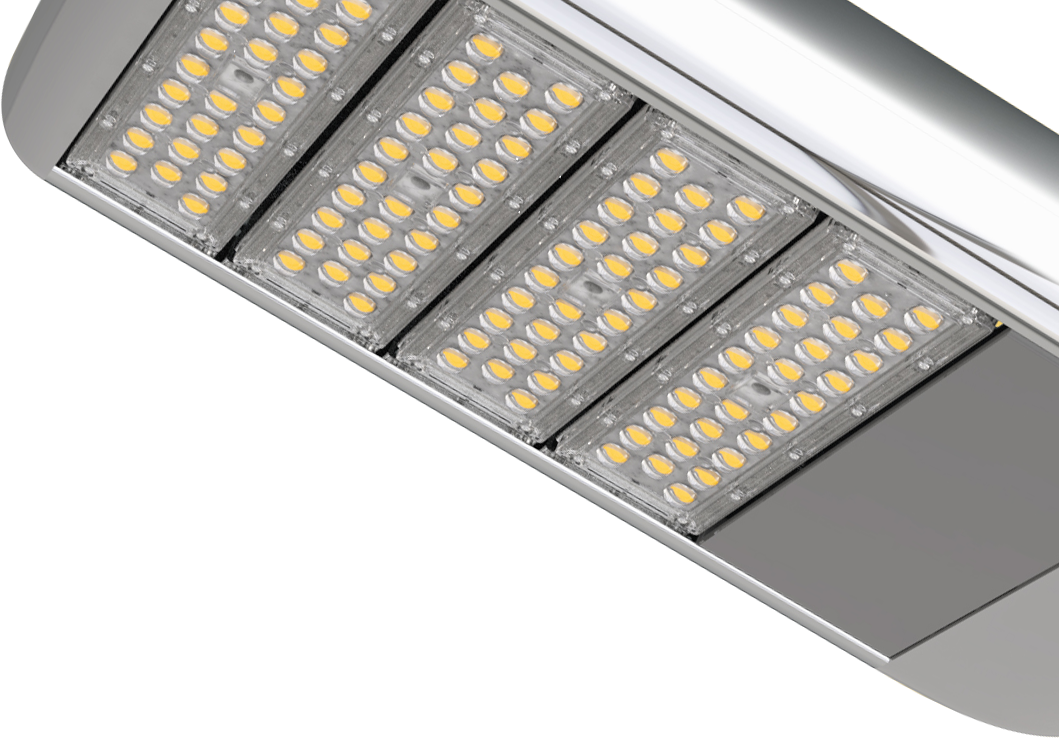

lifespan of the LED. Standardized LED module allows for fast maintenance and
upgrade

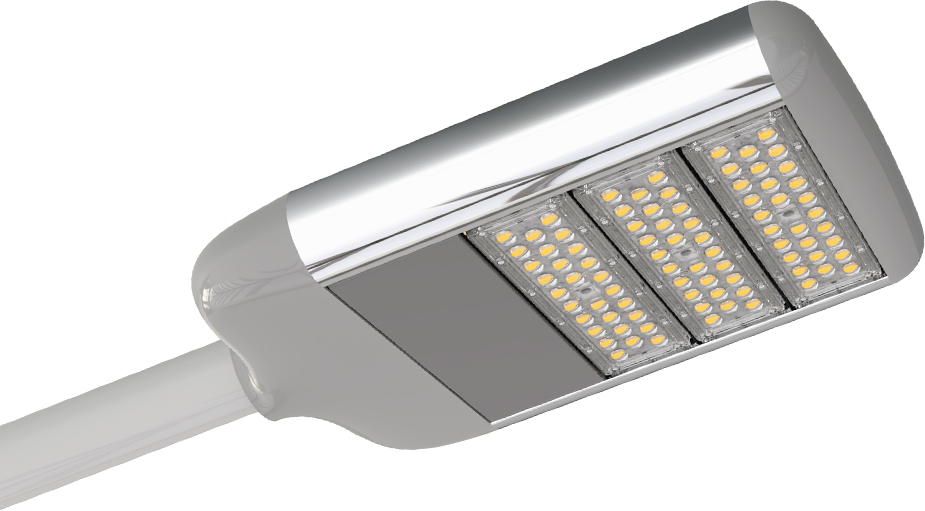

PHILIPS LUMILED LED technology is applied for 50,000h long life, which will
work and last over 12 years.
The high light efficiency 150lm/W and the super cost-efficiency shorten
down the electricity bill sharply with low investment.
LSC series luminaire is designed for roadway lighting for pedestrian and alley ways, streets and highways. Area and site lighting for parking lot, playground, sport area, campuses etc.
Alleys ways
Sidewalk
Streets
Highways
Parking lot
Sport area
OEM & ODM are acceptable!

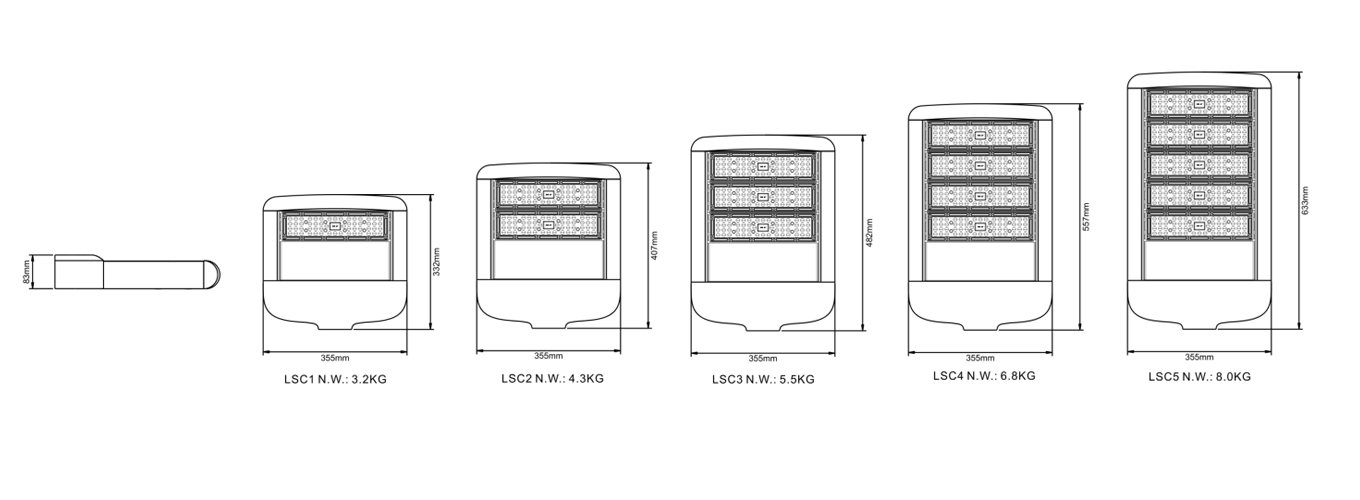

| Model no. | LSC1 | LSC2 | LSC3 | LSC4 | LSC5 | |
|---|---|---|---|---|---|---|
| Wattages | 60W | 120W | 180W | 240W | 300W | |
| Philips LumiLED 3030 LED | LED Qty | 56pcs | 112pcs | 168pcs | 224pcs | 280pcs |
| Initial Flux | 7800lm | 15600lm | 23400lm | 31200lm | 39000lm | |
| Efficiency | 130lm/W | |||||
| Philips LumiLED 5050 LED | LED Qty | 28pcs | 56pcs | 84pcs | 112pcs | 168pcs |
| Initial Flux | 9000lm | 18000lm | 27000lm | 36000lm | 45000lm | |
| Efficiency | 150lm/W | |||||
| Input Voltage | 220-240Vac, 50/60Hz | |||||
| CCT | 4000K/5000K (+/-10%) | |||||
| CRI | ≥70 | |||||

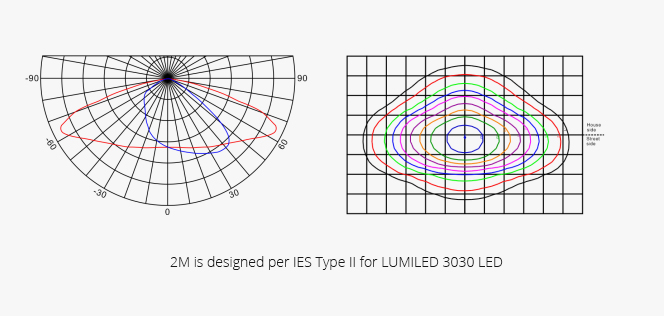

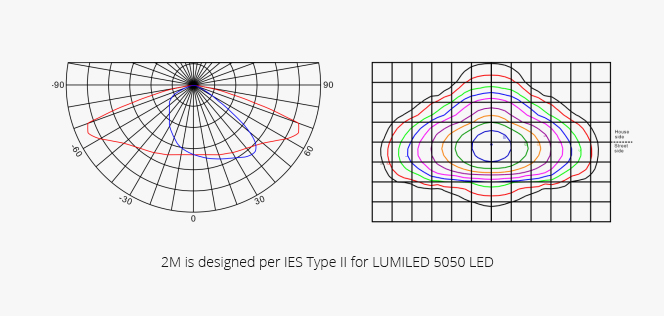

| Optics | Type 2M | |||||
| Life span | L70>50,000h (Tj≤80 ºC, Ta=25 ºC) | |||||
| Working Temp. | -40~50ºC (-40~122ºF) | |||||
| Storage Temp. | -400C to 850C | |||||
| Warranty | 3 years limited | |||||
| PF | >0.95 | |||||
| THD | <15% | |||||
| Model No. | LED type | CCT | Rated Lumen (lm) | Rated Power (W) | Efficiency (lm/W) | L70 @25 ºC | Driver Life @25 ºC |
|---|---|---|---|---|---|---|---|
| LSC1 | 3030 LED | 4000K/5000K | 7800 | 60 | 130 | >50,000h | >50,000h |
| LSC1 | 5050 LED | 4000K/5000K | 9000 | 60 | 150 | >50,000h | >50,000h |
| LSC2 | 3030 LED | 4000K/5000K | 15600 | 120 | 130 | >50,000h | >50,000h |
| LSC2 | 5050 LED | 4000K/5000K | 18000 | 120 | 150 | >50,000h | >50,000h |
| LSC3 | 3030 LED | 4000K/5000K | 23400 | 180 | 130 | >50,000h | >50,000h |
| LSC3 | 5050 LED | 4000K/5000K | 27000 | 180 | 150 | >50,000h | >50,000h |
| LSC4 | 3030 LED | 4000K/5000K | 31200 | 240 | 130 | >50,000h | >50,000h |
| LSC4 | 5050 LED | 4000K/5000K | 36000 | 240 | 150 | >50,000h | >50,000h |
| LSC5 | 3030 LED | 4000K/5000K | 39000 | 300 | 130 | >50,000h | >50,000h |
| LSC5 | 5050 LED | 4000K/5000K | 45000 | 300 | 150 | >50,000h | >50,000h |
