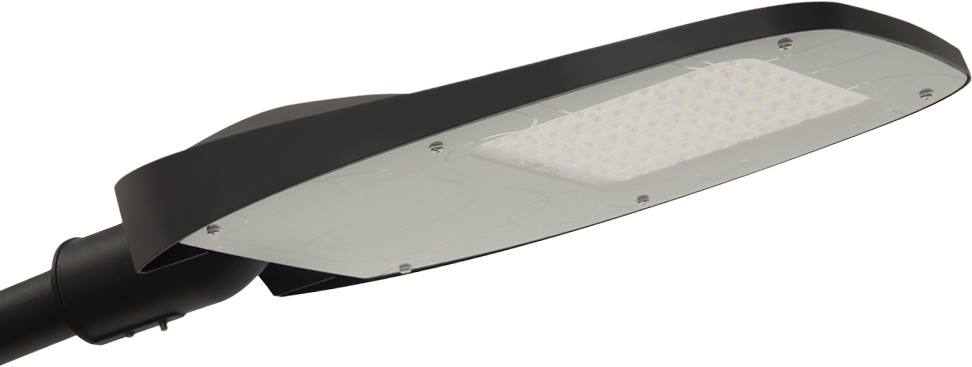

ATTENDRE series
LED street lightMEANWELL / INVENTRONICS Driver
● 5 Yrs Warranty ● >50,000h lifespan ● Custom service available● Dust free / Self-cleaning
MEANWELL / INVENTRONICS Driver
● 5 Yrs Warranty ● >50,000h lifespan ● Custom service available

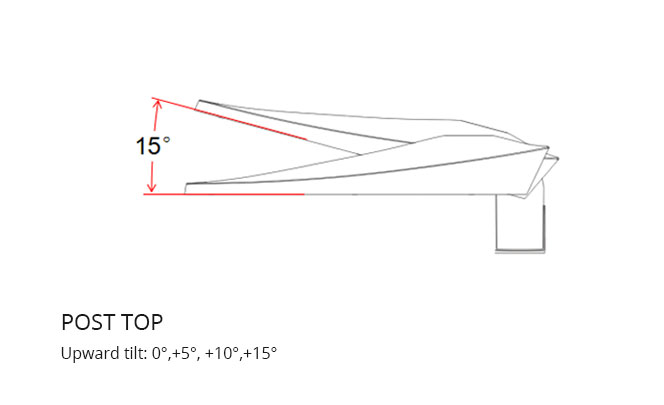

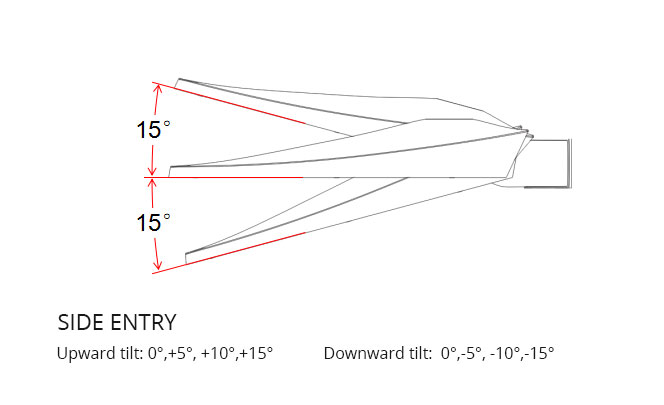

As a simple and energy effective means of illumination, the ATTENDRE series features including: 1. aesthetic appeal, 2. patented secondary light distribution, 3. streamlined design for self-cleaning housing, 4. meet a vast majority of challenging roadway and street lighting applications, 5. two mounting applications are available.

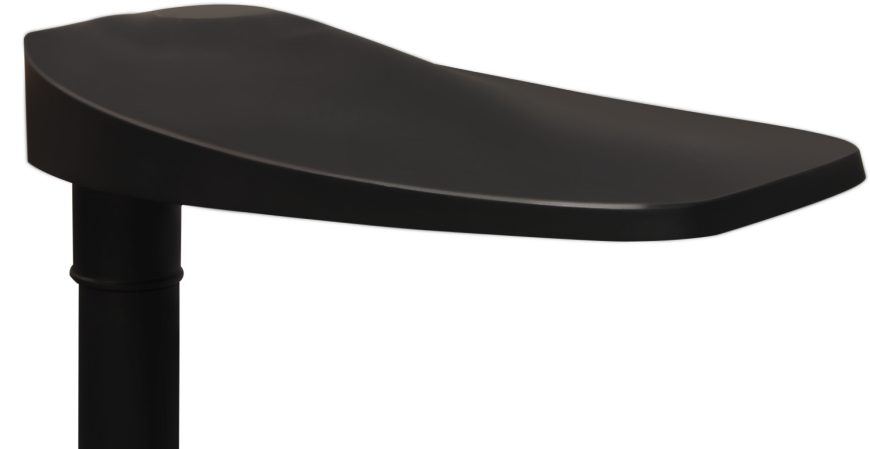

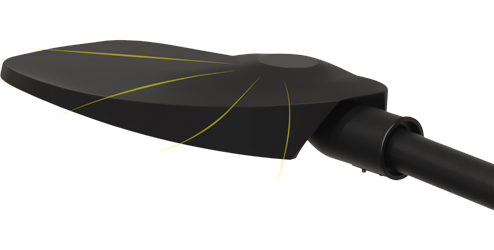

Streamlined housing in simple modern style features
dust-free and self-clean design.

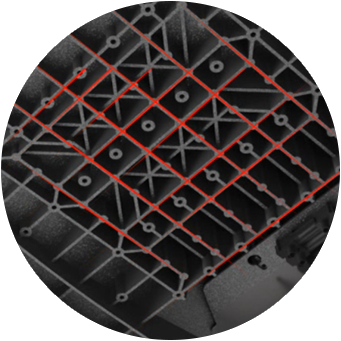

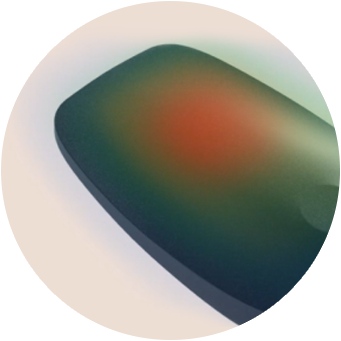

Hidden heat sink
Remove the external radiating rib to achieve the
combination of aesthetics and better
heat dissipation.
Multiple choices are available.
Finish is housed with powder coating art to provide excellent resistance to corrosion and aging.
Three gorgeous colors are available.

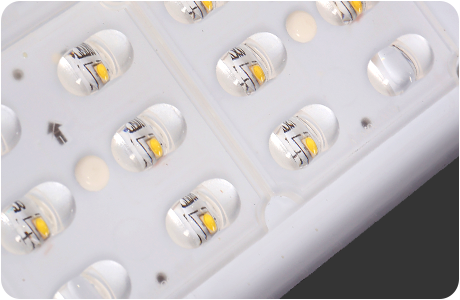

The Philips LED light source has been optimized for smooth, uniform light, with any glare largely mitigated. The LED energy conservation is up to 60% for maximum economical cost back. Luminous efficacy is > 105lm/W.

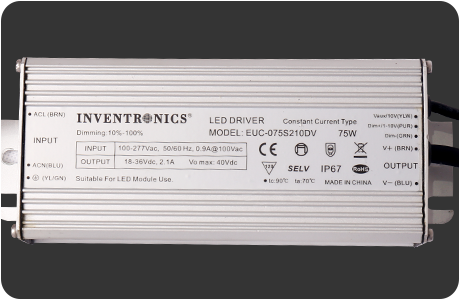

Multiple dimming options are available to meet customers demand for controllability and flexibility for applications. Overcurrent and overvoltage protection is integrated to deliver longer life span.
LIGHT DISTRIBUTION CURVE
Apply in highway, expressway, primary road, subordinate road and some other roads, along with square, sports ground, parking lot, etc. It is specialized design for road lighting.
Roadways
Sports grounds
Squares
Parking lots
| Product Model | ATD18-M | ATD18-S | ATD24-M | ATD24-S | ATD72-M | ATD72-S | ATD96-M |
|---|---|---|---|---|---|---|---|
| Power | 30W | 45W | 40W | 50W | 120W | 155W | 160W |
| Input Voltage | 100-277Vac, 50/60Hz | ||||||
| Input Current | 525mA | 700mA | 525mA | 700mA | 525mA | 700mA | 525mA |
| Power Factor | ≥0.95 | ||||||
| THD | ＜20% | ||||||
| CCT | 3000K/4000K | ||||||
| Luminous Flux(lm) | 3150 | 4725 | 4200 | 5250 | 12600 | 16275 | 16800 |
| Efficacy | 105lm/W | ||||||
| CRI | ≥70 | ||||||
| Beam Angle | 160°, 60° | ||||||
| IP Grade | IP66 | ||||||
| IK Rating | 10KV | ||||||
| Dimmer | 1-10V Dimmer、Clock Dimmer、PWM Dimmer、DALI Dimmer | ||||||
| Photocell | √（available） | ||||||
| Operating Temp | -35℃~50℃ | ||||||
| Lifespan | 70,000 hours | ||||||

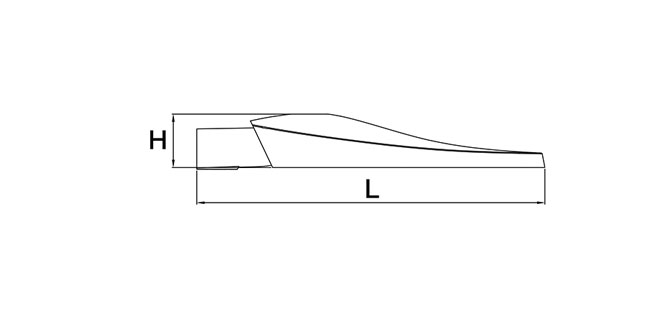

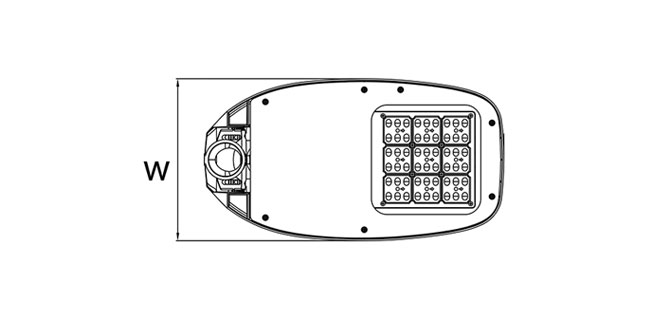

| Dimension(L*W*H) | 673*308*106mm | 769*383.5*131.5mm | |||||
| NW | 7.6kg | 9.5kg | |||||
| GW | 8.6kg | 10.5kg | |||||
| Carbon Size | 776*367.5*172mm | 860*484*186.5mm | |||||
