LSF Series
LED Flood LightStandard: 130lm/W
Hi-efficiency: 150lm/W
Standard: 130lm/W
Hi-efficiency: 150lm/W
Input Voltage: 220-240Vac 50/60Hz
Power: 60W/120W/180W/240W/300W

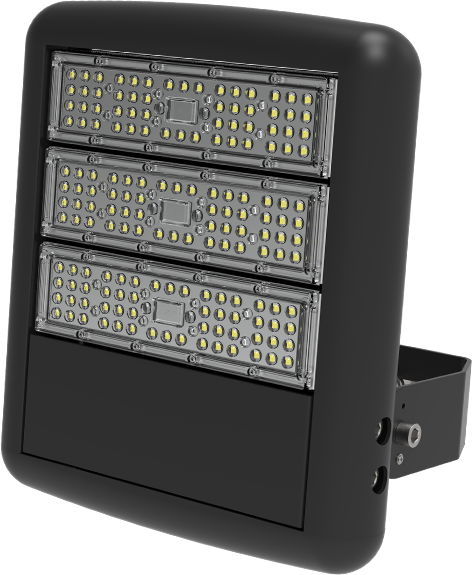

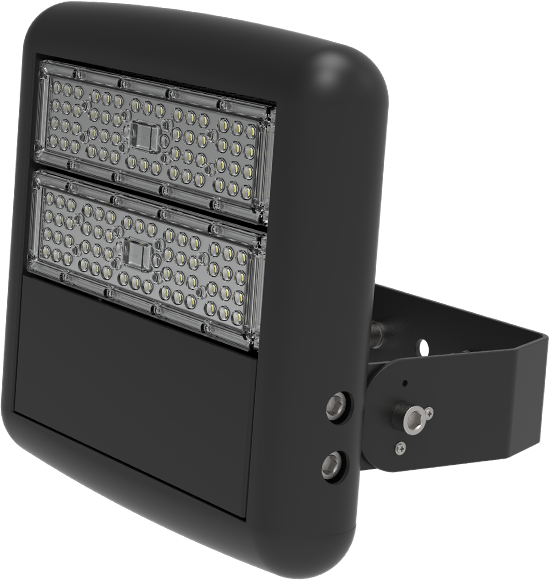

The compact design optimizes the construction, provides a very cost-efficient product
and guarantee the proper performance and durability.

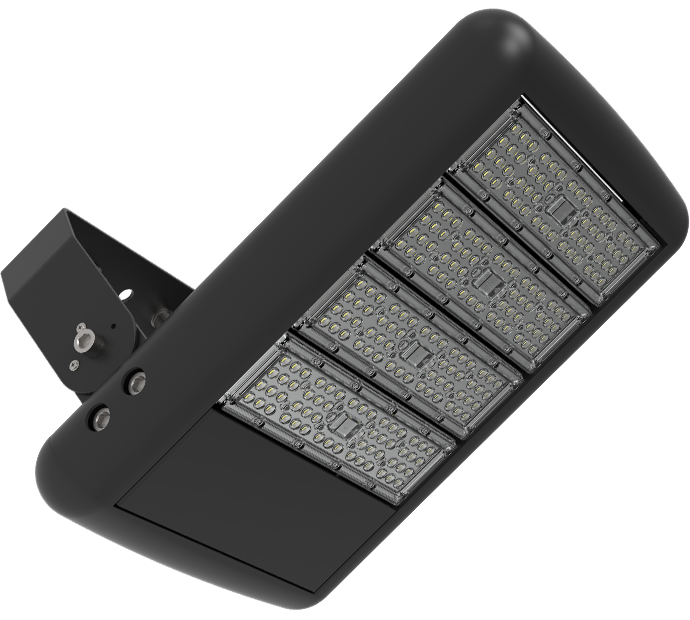

Pure aluminum heat sink is low weight and provides perfect heat management, guarantees
the Tj temperature of LED chip less than 80C @ Ta=25C for long lifespan of the LED.

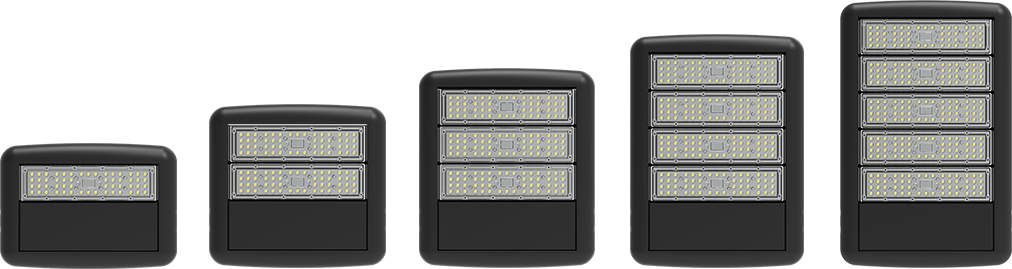

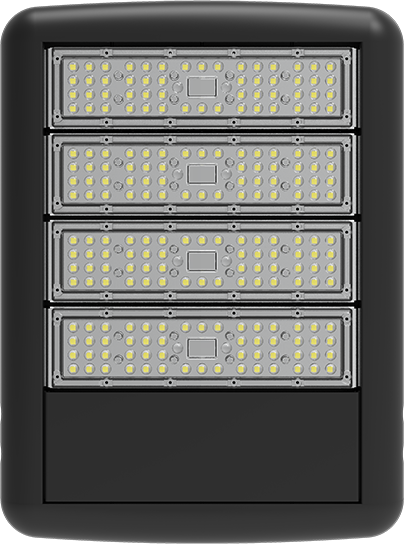

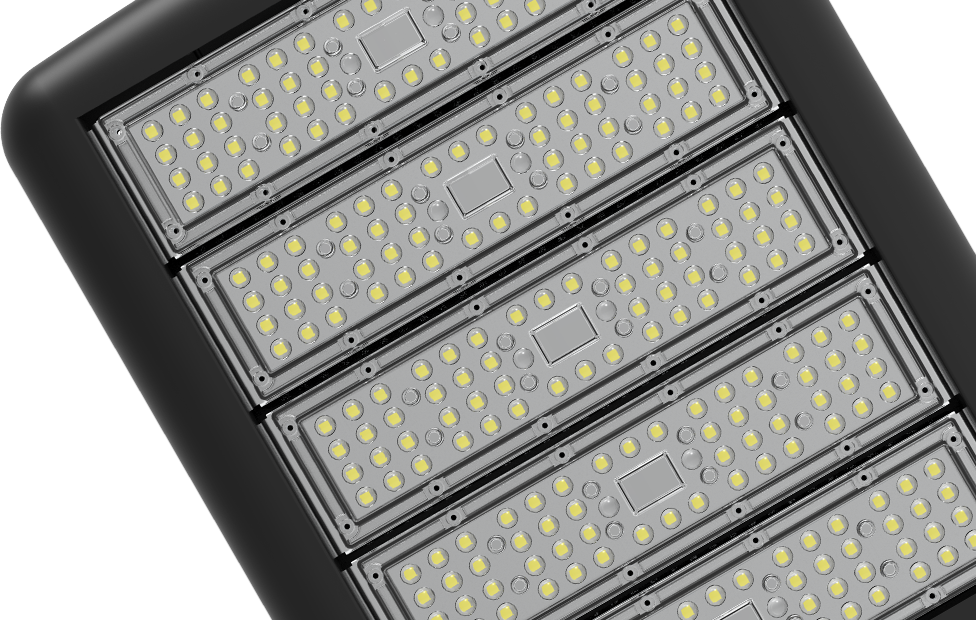

Standardized LED module allows for fast maintenance and upgrade
PHILIPS LUMILED LED technology is applied for 50,000h long life,
which will work and last over 12 years.
The high light efficiency 150lm/W and the super cost-efficiency shorten
down the electricity bill sharply with low investment.
LSF series luminaire is applied for buildings, commercial plaza, bridges, billboards, sport grounds, etc.
Buildings
Commercial plaza
Bridges
Streets
Sport grounds
OEM & ODM are acceptable!

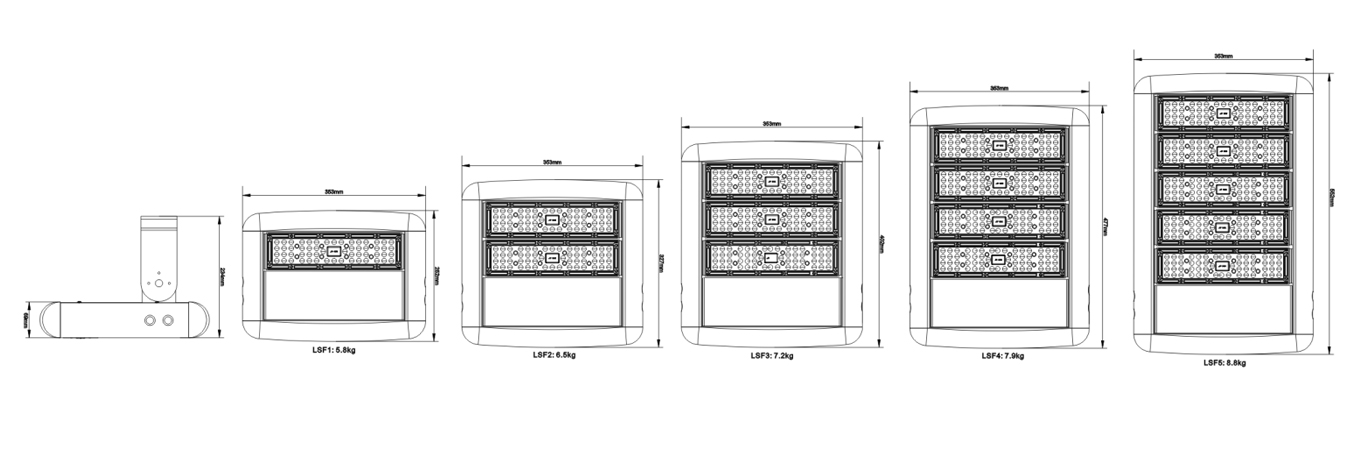

| Model no. | LSF1 | LSF2 | LSF3 | LSF4 | LSF5 | |
|---|---|---|---|---|---|---|
| Wattages | 60W | 120W | 180W | 240W | 300W | |
| Philips LumiLED 3030 LED | LED Qty | 56pcs | 112pcs | 168pcs | 224pcs | 280pcs |
| Initial Flux | 7800lm | 15600lm | 23400lm | 31200lm | 39000lm | |
| Efficiency | 130lm/W | |||||
| Philips LumiLED 5050 LED | LED Qty | 28pcs | 56pcs | 84pcs | 112pcs | 168pcs |
| Initial Flux | 9000lm | 18000lm | 27000lm | 36000lm | 45000lm | |
| Efficiency | 150lm/W | |||||
| Input Voltage | 220-240Vac, 50/60Hz | |||||
| CCT | 4000K/5000K (+/-10%) | |||||
| CRI | ≥70 | |||||

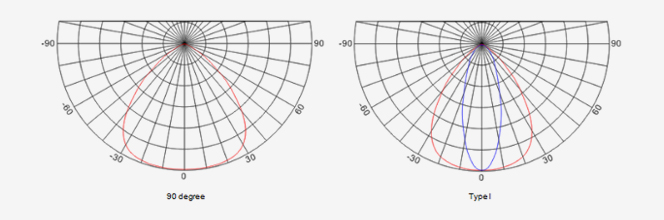

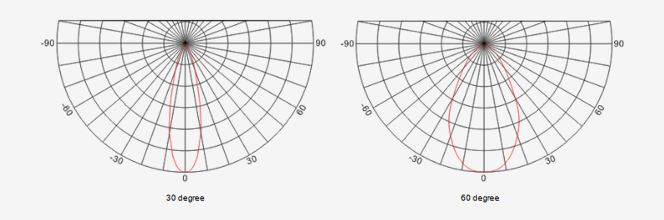

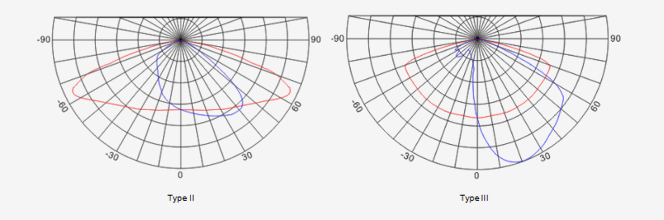

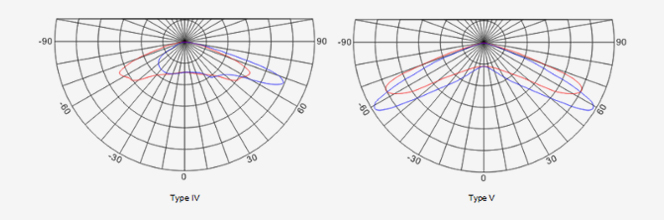

| Optics | 30°, 60°, 90°, Type I, Type II, Type III, Type IV, Type V | |||||
| Life span | L70>50,000h (Tj≤80ºC, Ta=25ºC) | |||||
| Working Temp. | -40~55ºC (-40~131ºF) | |||||
| Storage Temp. | -40ºC to 85ºC | |||||
| Warranty | 3 years limited | |||||
| PF | >0.95 | |||||
| THD | <15% | |||||
| Model No. | LED type | CCT | Rated Lumen (lm) | Rated Power (W) | Efficiency (lm/W) | L70 @25 ºC | Driver Life @25 ºC |
|---|---|---|---|---|---|---|---|
| LSF1 | 3030 LED | 4000K/5000K | 7800 | 60 | 130 | >50,000h | >50,000h |
| LSF1 | 5050 LED | 4000K/5000K | 9000 | 60 | 150 | >50,000h | >50,000h |
| LSF2 | 3030 LED | 4000K/5000K | 15600 | 120 | 130 | >50,000h | >50,000h |
| LSF2 | 5050 LED | 4000K/5000K | 18000 | 120 | 150 | >50,000h | >50,000h |
| LSF3 | 3030 LED | 4000K/5000K | 23400 | 180 | 130 | >50,000h | >50,000h |
| LSF3 | 5050 LED | 4000K/5000K | 27000 | 180 | 150 | >50,000h | >50,000h |
| LSF4 | 3030 LED | 4000K/5000K | 31200 | 240 | 130 | >50,000h | >50,000h |
| LSF4 | 5050 LED | 4000K/5000K | 36000 | 240 | 150 | >50,000h | >50,000h |
| LSF5 | 3030 LED | 4000K/5000K | 39000 | 300 | 130 | >50,000h | >50,000h |
| LSF5 | 5050 LED | 4000K/5000K | 45000 | 300 | 150 | >50,000h | >50,000h |
