BBELED® LCTM series helps you place the right amount of light where it is needed and when it is needed to optimize returns on your lighting energy bill even more. Let us help your business make the most of its lighting. Our solutions help you achieve the right mix of energy cost savings and visual impact.
LC1
LC2
LC3
LC4

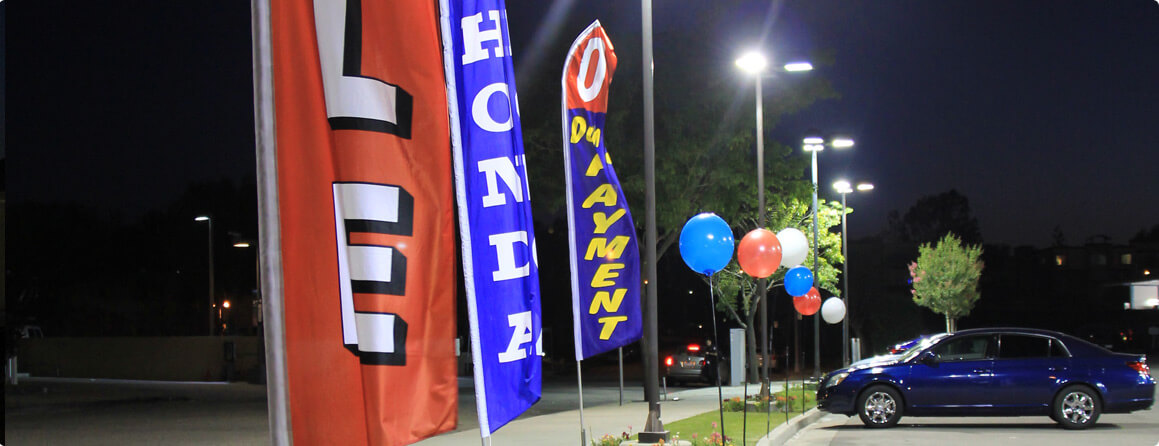

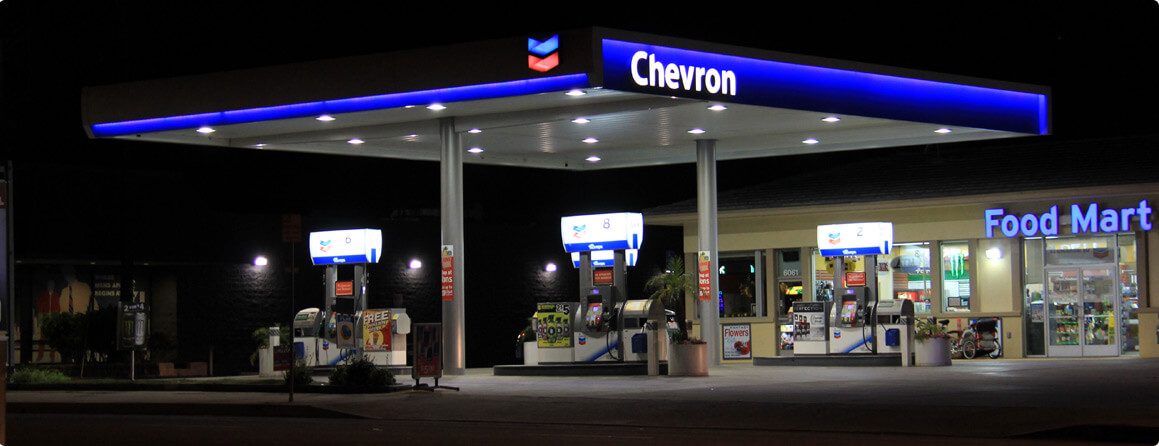

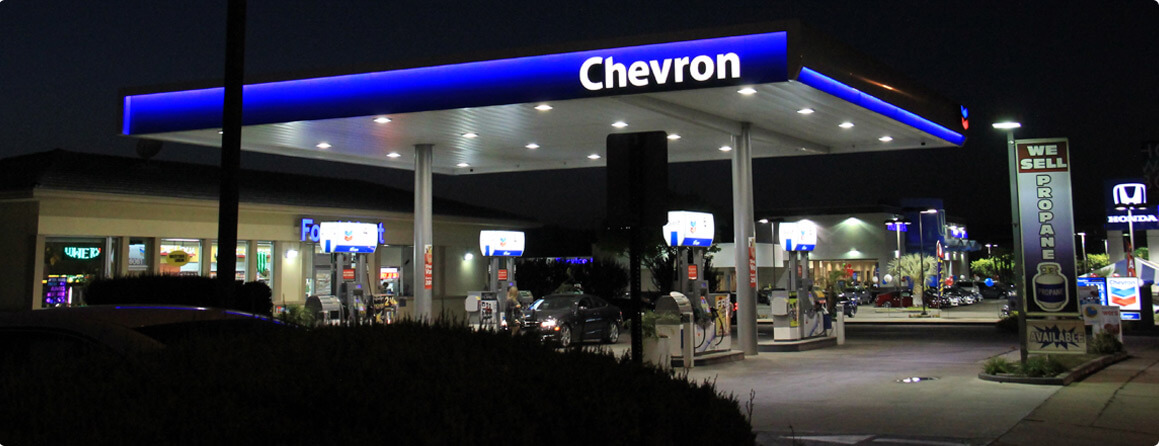

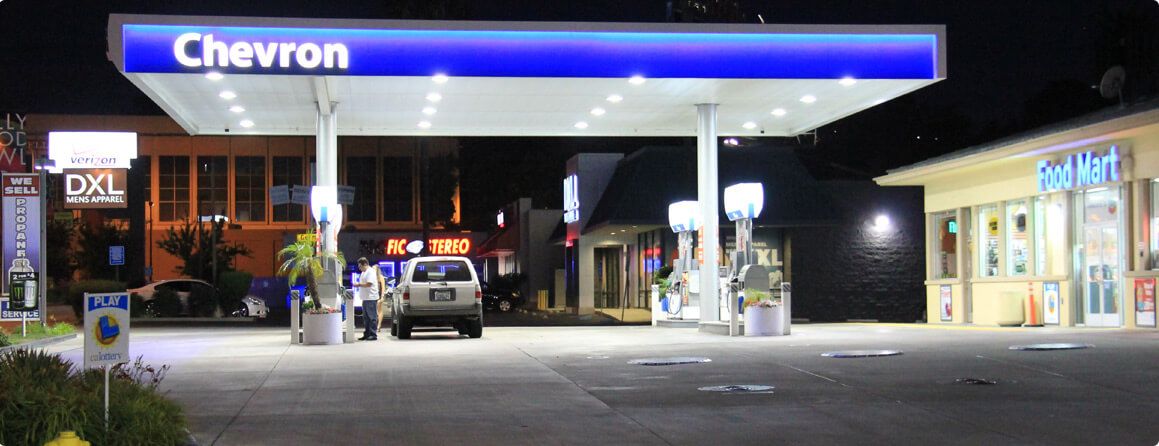

Gas stations, toll stations, garage, underpass way, warehouse, factory etc. Available to replace traditional MH or HPS luminaires up to 750W with more than 60% energy savings.
Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling. ASTM B117 salt spray tested.
Air-flow through convective cooling system with the anodized aluminum heat sink provides perfect heat management and guarantees the long life of LEDs up to 40C ambient temp. Oriented fins with natural clean system prevent debris build-up.
Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD for local assembly.
Tool-less access to the down-opening driver door makes easy maintenance and installation.
Surface mount, single/double deck recess mount, pendant mount are available.
IP65 water-tight protection.
3G vibration per ANSI C136.31 bridge and overpass designed.

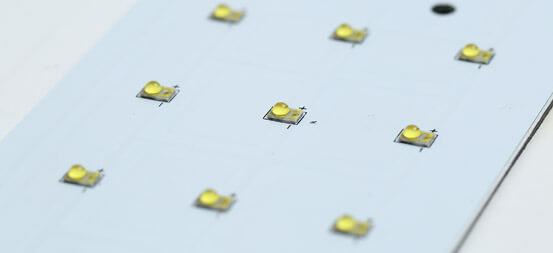

PHILIPS LumiLED Rebel ES 33/module is applied for high efficiency and long life (Calculated L70>100,000h @ Ta=40C). IESNA LM80 approved. Pure white 5000K (+/-300K) & Neutral white 4000K (+/-300K) with CRI>65. Metal core printed circuit board.

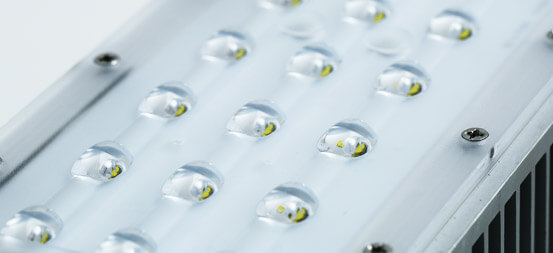

Precise optic lens in high intensity PC material with Type III (Type II, IV, V is coming soon), meets IESNA cut-off, provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, promote the reasonable and effective using of light.IP66 Optics system, meets IEC60529.
Universal drivers are available in 100-240Vac (Europe version), 120-277Vac, 347-480Vac (North America version), 50/60Hz, power factor >0.95 and THD < 15%. 700mA constant current output.
SPD (10KV/10KA) provides protection and meets ANSI/IEEE C62.41 for Location Category C-High & UL1449 for North America version.
Tool-less 360 degree rotatable twist-lock photocell control (3-wire, 5-wire, 7-wire) ANSI C136.10 compliant are available for options.
0-10V dimming control (IEC60929 compliant) is available for options.
CE (Europe version) pending, UL/CUL 1598 (North America version) pending, RoHS compliant
5 years limited
Note: all specifications subject to change without notice.
| Series | #of module | - | Voltage | LED driving current | CCT | Optics | LED bin | - | Options |
| LC | 2 | - | E | S | 5K | 3M | RU | - | VD |
| LC | 1 2 3 4 |
E: 100-240Vac U: 120-277Vac H: 347-480Vac |
S: 700mA M: 700mA 525mA 350mA |
4K: 4000K 5K: 5000K |
3M: Type 3M | RU: Rebel ES U (standard) RV: Rebel ES V (medium) RW: Rebel ES W (high) |
VD1: 0-10V dimming RM: Recess mount SM: Surface mount |
*Consult your sales representative for the options, the lead time will be varied depending on the options selected.
1. Control by others.
| Number of LEDs | LED drive current(mA) | Rated Power(W) | Total Current (Amp) | |||||
| 120V | 220V | 230V | 240V | |||||
| LP1 | 33 | 700 | 75 | 0.67 | 0.37 | 0.35 | 0.34 | |
| LP2 | 66 | 700 | 150 | 1.23 | 0.66 | 0.64 | 0.61 | |
| LP3 | 99 | 700 | 225 | 1.90 | 1.03 | 0.99 | 0.95 | |
| LP4 | 132 | 700 | 285 | 2.46 | 1.33 | 1.28 | 1.23 | |
 |
|

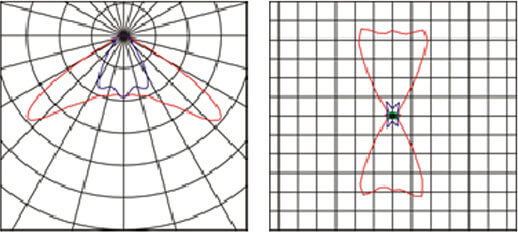

| 3M is designed per IES Type III |
| Cat. No. | CCT | Power (W) | Initial Lumen (lm) | Efficiency (LPW) | Optics | LED bin | IES file | IES Date |
| LC1-ES4K3MRU | 4000K | 78 | 6487 | 84 | 3M | RU | LC1-ES4K3MRU.ies | 05/24/14 |
| LC1-ES4K3MRV | 4000K | 76 | 6906 | 91 | 3M | RV | LC1-ES4K3MRV.ies | 05/24/14 |
| LC1-ES5K3MRU | 5000K | 78 | 6543 | 84 | 3M | RU | LC1-ES5K3MRU.ies | 05/23/14 |
| LC1-ES5K3MRV | 5000K | 78 | 7018 | 90 | 3M | RV | LC1-ES5K3MRV.ies | 05/23/14 |
| LC1-ES5K3MRW | 5000K | 78 | 7295 | 94 | 3M | RW | LC1-ES5K3MRV.ies | 05/24/14 |
| LC2-ES4K3MRU | 4000K | 143 | 12366 | 87 | 3M | RU | LC2-ES4K3MRU.ies | 05/24/14 |
| LC2-ES4K3MRV | 4000K | 140 | 13126 | 94 | 3M | RV | LC2-ES4K3MRV.ies | 05/24/14 |
| LC2-ES5K3MRU | 5000K | 144 | 12472 | 87 | 3M | RU | LC2-ES5K3MRU.ies | 05/23/14 |
| LC2-ES5K3MRV | 5000K | 144 | 13378 | 93 | 3M | RV | LC2-ES5K3MRV.ies | 05/23/14 |
| LC2-ES5K3MRW | 5000K | 142 | 13906 | 98 | 3M | RW | LC2-ES5K3MRW.ies | 05/24/14 |
| LC3-ES4K3MRU | 4000K | 221 | 18871 | 85 | 3M | RU | LC3-ES4K3MRU.ies | 05/24/14 |
| LC3-ES4K3MRV | 4000K | 217 | 20091 | 93 | 3M | RV | LC3-ES4K3MRV.ies | 05/25/14 |
| LC3-ES5K3MRU | 5000K | 223 | 19034 | 85 | 3M | RU | LC3-ES5K3MRU.ies | 05/23/14 |
| LC3-ES5K3MRV | 5000K | 223 | 20416 | 92 | 3M | RV | LC3-ES5K3MRV.ies | 05/23/14 |
| LC3-ES5K3MRW | 5000K | 220 | 21222 | 96 | 3M | RW | LC3-ES5K3MRV.ies | 05/24/14 |
| LC4-ES4K3MRU | 4000K | 286 | 24321 | 85 | 3M | RU | LC4-ES4K3MRU.ies | 05/24/14 |
| LC4-ES4K3MRV | 4000K | 281 | 25968 | 92 | 3M | RV | LC4-ES4K3MRV.ies | 05/25/14 |
| LC4-ES5K3MRU | 5000K | 288 | 24531 | 85 | 3M | RU | LC4-ES5K3MRU.ies | 05/23/14 |
| LC4-ES5K3MRV | 5000K | 288 | 26313 | 92 | 3M | RV | LC4-ES5K3MRV.ies | 05/24/14 |
| LC4-ES5K3MRW | 5000K | 285 | 27351 | 96 | 3M | RW | LC4-ES5K3MRW.ies | 05/24/14 |
*the above data is based on BBELED lab test result, and is kept updating, changes will be not informed.

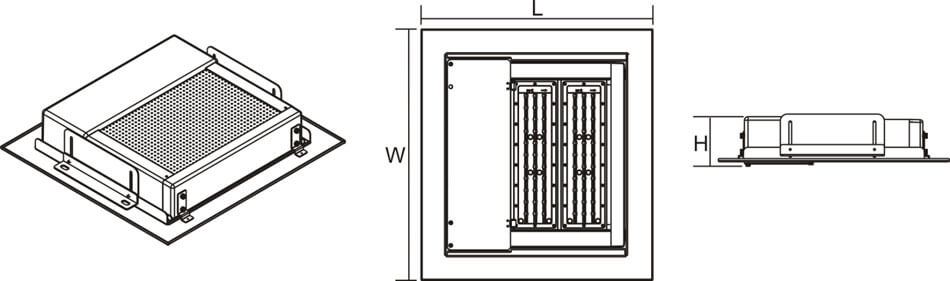

| LC1 | LC2 | LC3 | LC4 | |
| L | 15.9”(404mm) | 20.2”(512mm) | 24.4”(620mm) | 28.6”(726mm) |
| W | 21.8”(554mm) | 21.8”(554mm) | 21.8”(554mm) | 21.8”(554mm) |
| H | 4.3”(109mm) | 4.3”(109mm) | 4.3”(109mm) | 4.3”(109mm) |
| N.W. | 22.9lb (10.4kg) | 28.2lb (12.81kg) | 36.5lb (16.56kg) | 41.8lb (18.97kg) |

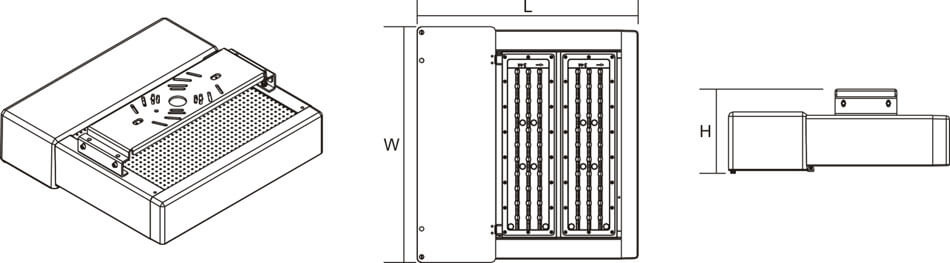

| LC1 | LC2 | LC3 | LC4 | |
| L | 11.3”(286mm) | 15.5”(394mm) | 19.8”(502mm) | 24.0 (610mm) |
| W | 16.5”(420mm) | 16.5”(420mm) | 16.5”(420mm) | 16.5”(420mm) |
| H | 5.9”(150mm) | 5.9”(150mm) | 5.9”(150mm) | 5.9”(150mm) |
| N.W. | 20.0lb (9.08kg) | 24.7lb (11.19kg) | 32.3lb (14.64kg) | 36.6lb (16.75kg) |
