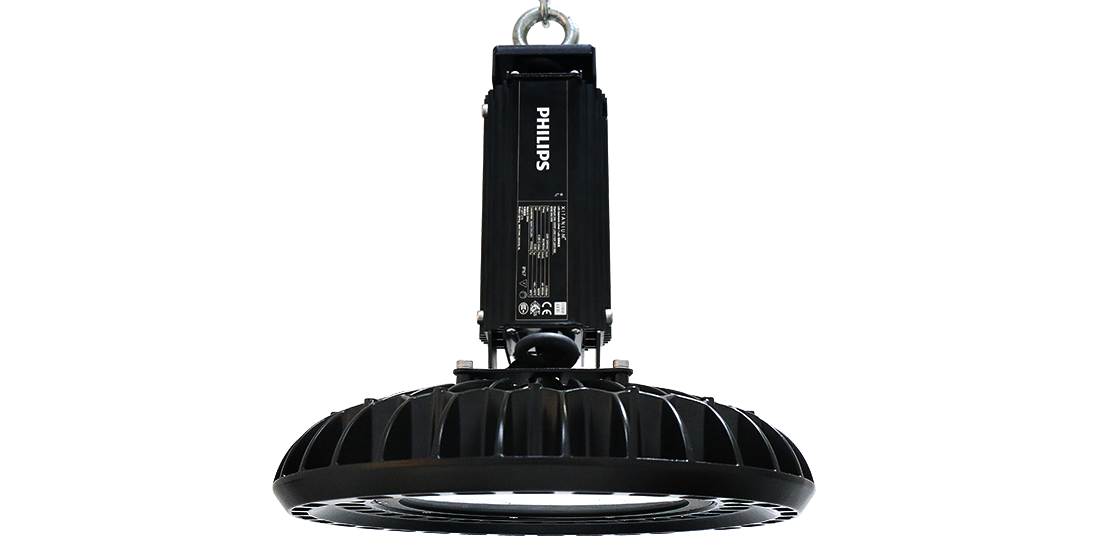

LED High Bay Light - LUMO series

LUMO series

LED High Bay Light - LUMO series

LUMO series

LED High Bay Light

PHILIPS light source & driver

100-240W 5 Yrs Warranty >50,000h life span

LUMO Series UFO High Bay Light adopt Philips Light Source and Power Supply with high quality, energy conservation, high luminance and long service life. The shell makes use of high thermal conductivity aluminum alloy along with special surface treatment for better heat dissipation. And it adopts constant current power supply with high efficiency along with low heat and high accuracy of constant current. The products emit soft and well-distributed light along with brighter effect and great color rendering. It also features unique structure, high efficiency and green technology.

LED High Bay Light - LUMO series
LED High Bay Light - LUMO series

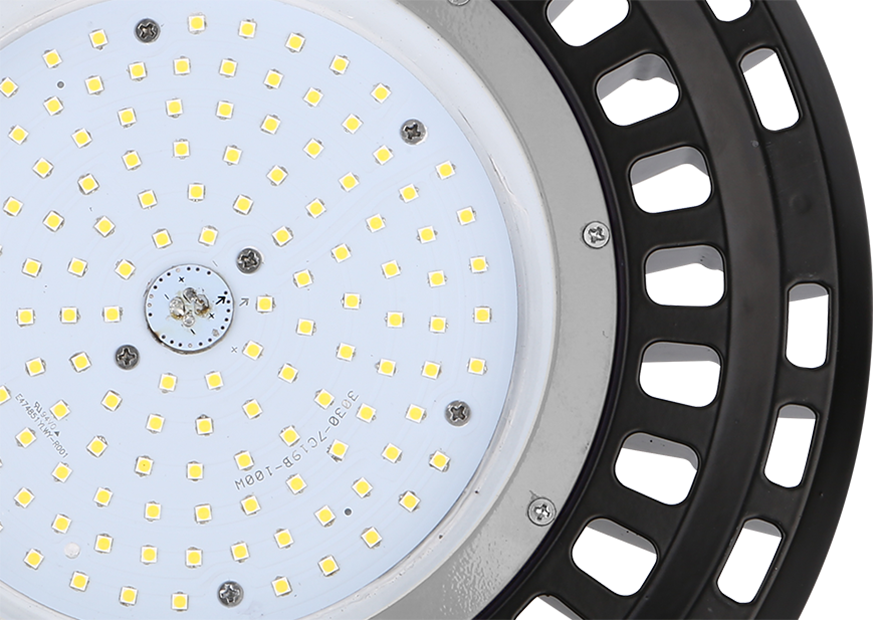

PHILIPS light source :

High-quality light source and energy conservation over 60% compared to
traditional products.
Luminous Efficiency:130lm/W

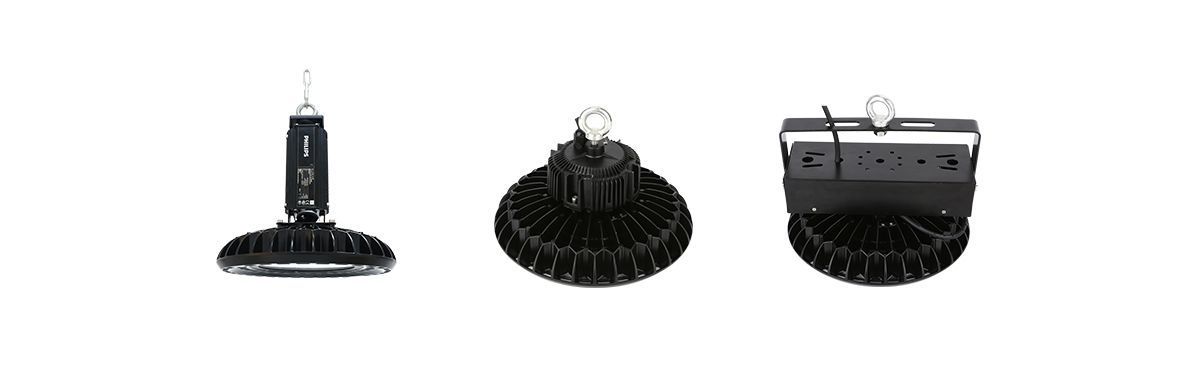

Two choices of the driver

LED High Bay Light - LUMO series
LED High Bay Light - LUMO series
LED High Bay Light - LUMO series

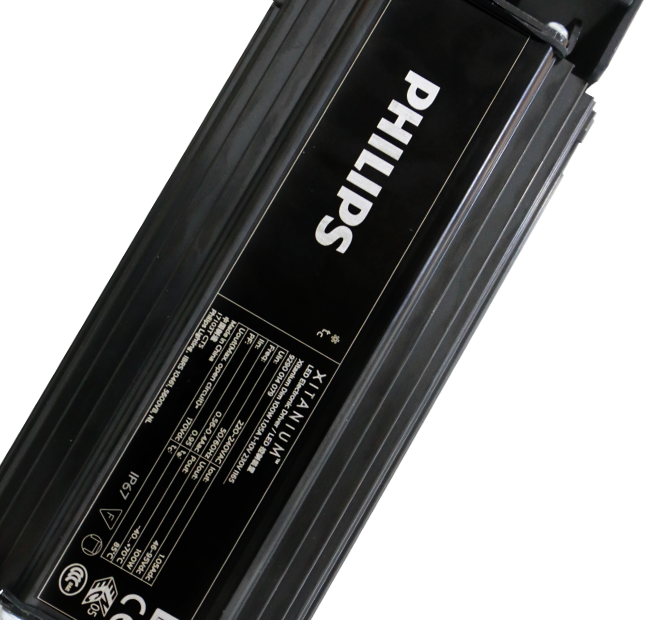

PHILIPS driver

High quality and quick start,
no glare and noise.

LED High Bay Light - LUMO series

Mean Well driver

IP65:Made of aluminum alloy with high strength, great
anti-corrosion and weatherability, perfect heat
dissipation and prevention for lightning strike.

Beam Angle:60°、 90°、110°

Light Distribution Curve

Application Situations

Being suitable in Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, exhibition Hall and other inflammable and explosive places for lighting.

  • Factory

    Factories

  • Factory

    Highway toll stations

  • Factory

    Supermarkets

  • Factory

    Gas stations

  • Factory

    Chemical workshops

  • Factory

    Storerooms

  • Factory

    Exhibition halls

Product parameter

OEM & ODM are acceptable!

Model LMO100 LMO150 LMO200 LMO240
Power 100W 150W 200W 240W
Input Voltage 220-240Vac
Input Current 0.46A 0.68A 0.91A 1.1A
Frequency 50/60Hz
Power Factor 0.95
Total Harmonic Distortion <20%
Color Temperature 3000-6500K
Luminous Flux 13000lm 19500lm 26000lm 31200lm
Luminous Efficacy 130 lm/W
CRI  80
Beam Angle 60°、 90°、110°
LED Quantity 126 198 300 315
Light Transmittance 0.92
IP Level IP65
Surge(KV) 6 KV
Operating Temperature -40~50℃
Lifespan 50,000h

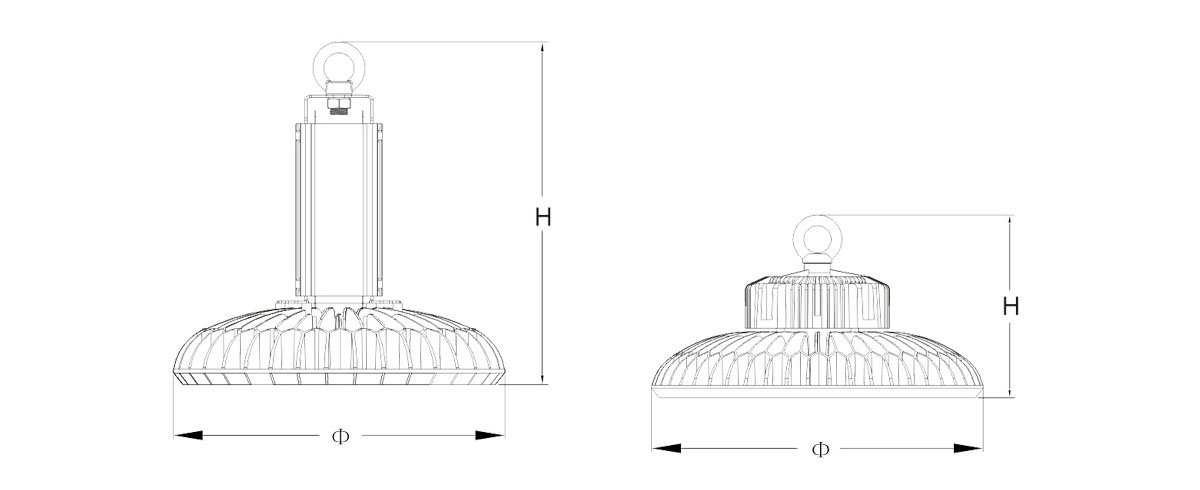

Dimension(D*H) Φ280*185mm Φ340*187mm Φ400*196.5mm Φ400*196.5mm
Net Weight 2.75kg 4 kg 5.2 kg 5.2 kg
Gross Weight 3.5 kg 5 kg 6.4 kg 6.4 kg
Carton Size 310*310*190mm 390*390*195mm 440*440*200mm 440*440*200mm

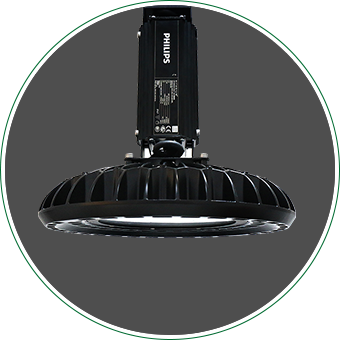

Product features

  • 1

    Adoption of high-quality Phillips LED as light source with energy conservation over 60% compared to traditional products.

  • 2

    Long lifespan over 5 years in normal environment.

  • 3

    Soft and well-distributed interior light along with brighter luminance. Great color rendering and more authentic performance of object color and more choices of different light colors can meet different environment requirement.

  • 4

    Instant start, no glare and no noise.

  • 5

    Light body is made of aluminum alloy material with high strength, great anti-corrosion and weatherability, perfect heat dissipation and prevention for lightning strike.

  • 6

    Green technology conforms to the rule of RoHS.
